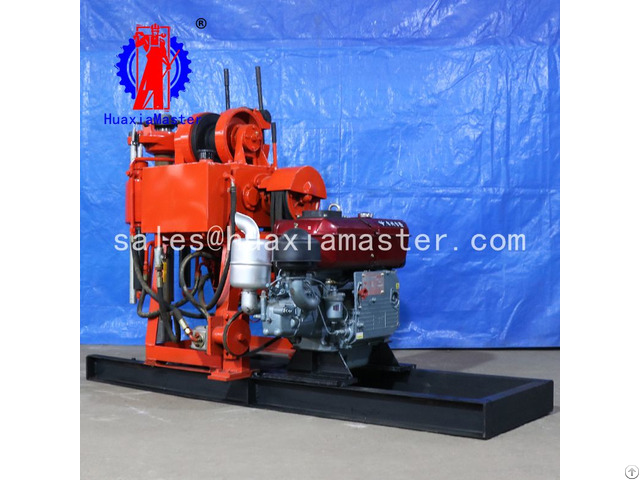

Xy 200 Hydraulic Core Drilling Rig Manufacturer - China

1 - Applications of XY-200 core drilling rig

Geological survey, geophysical exploration, road and high-rise building foundation exploration, wells, blasting holes and other drilling projects.

2 - Parameters of XY-200 core drilling machine

Maximum opening diameter 400mm

Maximum borehole depth 200m

Diameter of the end hole 75mm

Borehole dip angle 90-75°

Machine overall size 2.75*0.95*1.60m

Drill pipe diameter 50mm

Weight of drill rig diameter of drill pipe (without power) 760kg

A vertical scroll of painting

Shaft rotation speed 71/142/310/20r/min

Vertical axis stroke 450mm

Windlass

Maximum lifting weight of single rope 2008kb

Drum lifting speed 17/35/75/160 rm/s

Wire rope diameter: 13mm

Wire rope capacity 35mm

Width of sluice 70mm

Mud pump

Type: horizontal single cylinder double action flow：180L/min

Working pressure 0.7mpa

Maximum pressure 1.5mpa

Inlet size 50mm

Outlet pipe diameter 45mm

Power

Electric machinery 15kw

Rated speed 1460r/min

Diesel oil 22hp

Rated speed 2200r/min
