    • Xy 100 Hydraulic Core Drilling Rig Machine - China

    price: 7200.00 Dollar US$

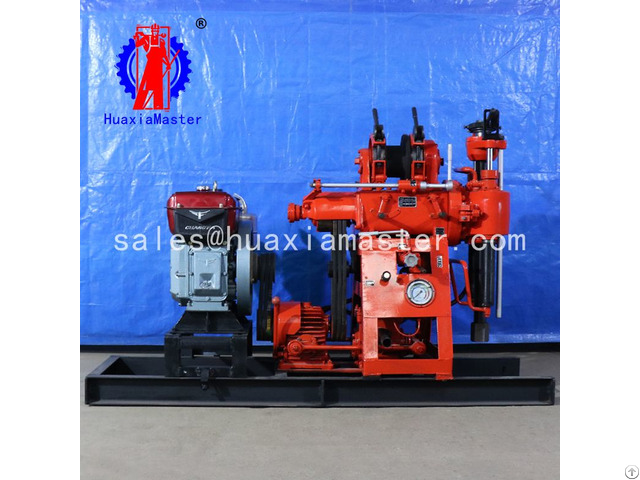

    Xy 100 Hydraulic Core Drilling Rig Machine

    Products Photos Catalog 100 Hydraulic Core Photos Catalog

    1 - Applications of XY-100 hydraulic core drilling rig

    XY-100 hydraulic core drilling rig is widely used for core drilling rig, geological exploration and prospecting, geothermal wells, blast-hole, irrigation projects, etc.

    2 - Specifications of XY-100 hydralic core drilling rig

    Drilling depth 110

    Maximum open hole caliber 220mm

    End hole caliber 75mm

    Drill rod caliber 50mm /42mm

    Drilling angle 90

    Drilling rig weight (exclude diesel engine) 610kg

    Unity machine dimensions 2.1*0.9*1.3m

    Spindle

    Spindle speed 130/300/480/730/830/1045 r/min

    Spindle stroke 450mm

    Hoist

    Max.

    lifting capacity with single rope 1600kg

    Lifting speed with single rope 1.06/0.67/0.32 m/s

    Wire rope caliber 13mm

    Wire rope cubic measure 35mm

    Hug floodgate caliber 254mm

    Hug floodgate belt width 50mm

    Distance between drill and hole 230mm

    Power

    Diesel engine S1100

    Electric motor Y160M-4 / 10KW

    Mud pump

    Type Horizontal single-urn twin-action

    Displacement (with diesel engine/electric motor) 170l/min

    Max.

    pressure 1.5mpa

    Work pressure 0.7mpa
