1 - Brief introductions of ZDY-650 full hydraulic tunnel drilling rig

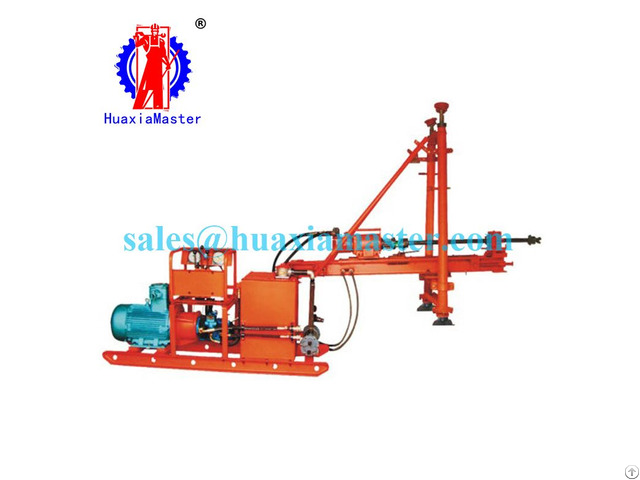

The ZDY-650 full hydraulic tunnel drilling rig is mainly used for drilling holes, grouting holes.

The working area is more than 6.5 square meters, and the height is more than 2.3m.

The width is more than 2.8m.

It has two kinds of drills, which are split column rack and pedestal rack.

It can choose different drilling rig according to the height and usage of underground roadway.

2 - Specifications of ZDY-650 full hydraulic tunnel drilling rig Project Unit ZDY-650

Open hole diameter mm Ф75/Ф115

End hole diameter mm Ф65

Maximum drilling depth m 150

Drilling pipe diameter mm 42

Output torque n.

m 650

Output rotating speed r/min 95

Pullout force kn 35

Feeding force kn 48

Rated advance speed m/min 0-1.5

Feeding stroke mm 850

Drilling angle ° 0-±90°

Hardness range (protodyakonov scale of hardness) / f≤8

Noise db(a) ≤92

Working efficiency % ≥40

Main engine dimension(long * weight * high) mm 2200*600*500

Total weight (excluding drill rod) kg 1200

Pumping station pump discharge pressure mpa rotation 14/ feed 11 working medium / 46# Antiwear hydraulic oil tank capacity l 96.6 dimension (long *wide*high) mm 1480*700*650

Control station feeding pressure mpa 11 reverse rotation pressure mpa 13 forward rotation pressure mpa 12 dimension (long *wide *high) mm 500*400*450

Motor model / YBK2-160L-4 rated power kw 15 rated voltage v 380/660 660/1140 rated current a 30/17.5

17.5/10.1 rated rotating speed r/min 1460

Two layer steel wire braided hydraulic support rubber tube assembly RB2-6/10/13/16/19/22/25/3 2
