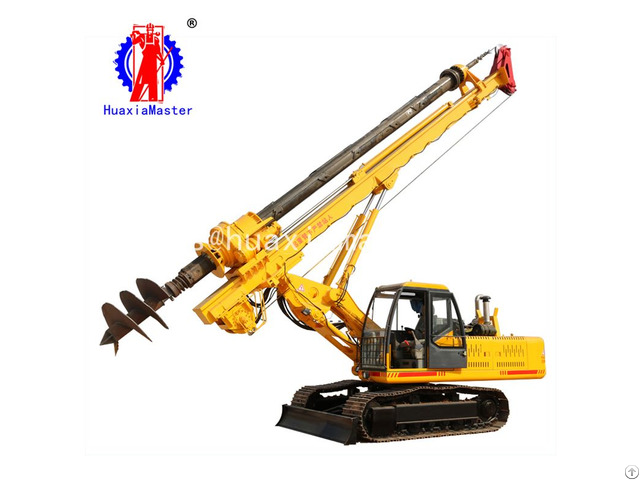

Supply 15 Meters Crawler Rotary Pile Drilling Rig With Square Power Rod From Huaxiamaster - China

1 - The brief introduction of 15 meters wheeled rotary pile drilling rig

The 15 meters wheeled rotary pile drilling rig is a kind of rotary pile drilling rig that is suitable for building foundation engineering.

It is widely used in the construction of various soil layers, such as sand, clay, silty soil and so on.

At the same time, it is widely used in the construction of cast-in-place piles, continuous walls, foundation reinforcement.

The small rotary drilling rig has the characteristics of low noise, small vibration, large torque, muti-function, fast drilling speed, flexible in operation, high construction efficiency, various speed regulation, electronic automatic monitoring.

These characteristics gradually replace some traditional piling and drilling equipment.

2 - The technical parameters of 15 meters wheeled rotary pile drilling rig

Model XWL-15

Work pattern oil cylinder force wire rope deadweight

Hole diameter mm 500-1500mm

Hole depth m 15 10-26

Dimension m 7.7*2.2*3.0

Weight t 8.5

Tire type / 900-20 Engine model / 6105 power kw 125 rotating speed r/min 2400

Power head torque kn.

m 17000-22000

Power head roatating speed r/min 30-50

Maximum lifting force kn 150

Maximum stroke m 11-22

Wire rope diameter mm 16

Rotation angle ° 180

Moving speed km/h 20-30

Maximum gradeability ° 25-30
