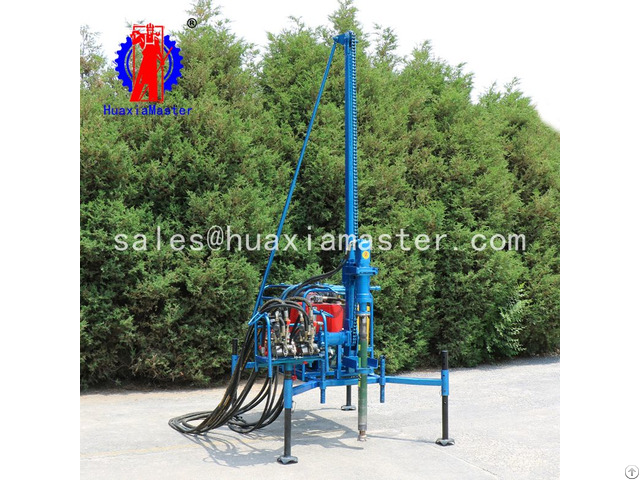

  • Sdz 30s Pneumatic Mountain Drilling Rig Price - China

    price: 6800.00 Dollar US$

    1 - Brief introduction of SDZ-30S mountain drilling rig

    SDZ-30S is developed by Shandong Master Machinery Group Co., Ltd combined with our company’s years of geophysical exploration drilling rig experience and the integration of foreign excellent mountain rig.

    SDZ-30 is a upgraded version mountain drilling rig.

    The rig has a optimization design and is a cost-effective product with great value.

    The SDZ-30S mountain drill can meet the construction requirements of air shock drilling and so on; so it can adapt to different geological environments.

    The SDZ-30S mountain geophysical drilling rig is now widely used in the mountainous, jungle, hills, gobi, loess plateeu, seasonal farmland and other complex areas without water source, such as oil and gas seismic exploration, field investigation, geological structure investigation and other drilling engineering construction work.

    2 - The features of SDZ-30S mountain drilling rig

    Light weight modular design is adopted for quick disassemble and assemble for easy handling.

    The drilling rig and drill frame are strengthened and reinforced, which are more earthquake resistant and longer lasting.

    The front end of the base is designed with two sets of screw support, and the drill rig is more stable when drilling.

    Adopt a new and optimized hydraulic system, with higher efficiency and better control.

    The hydraulic oil tank is made by sheet metal process to reduce weld seam and use oil leakage for a long time.

    The screw type air compressor has the advantages of low energy consumption, low noise, high quality, stable exhaust pressure and low failure rate.

    Lengthening the tubing between the hydraulic pump station and the operation table can achieve 3 meters outside operation.

    3 - The specifications of SDZ-30S mountain drilling rig

    SDZ-30S Specifications Capability Drilling mode air shock drilling Borehole diameter mm 76 Drilling depth m 30 Drilling pipe diameter mm 60*1500 Stroke mm 1850 Hydraulic pump Gasoline engine power hp 35 Rated pressure mpa 20 Rated flow rate l/min 60

    Power Torque n.

    m 1000 Rotating speed r/min 0-140

    Lifting system Rated pressure kn 7.5 Rated lifting power kn 15 Speed of lifting m/s 0.77 Screw air compressor Gasoline engine power hp 35 Displacement m3/min 35 Discharge pressure mpa 0.8

    4 - The configuration list of SDZ-30S mountain drilling rig

    Base assembly Set 1 It includes chassis, leg and ball screw support

    Drill stand assembly set 1 It includes diagonal member, mast, chain wheel, chain, lifting motor, rotary motor and intake hole Power of pump station assembly set 1 It includes frames, engines, belt pulley and belts

    Pump station assembly set 1 It includes frame, hydraulic oil pump, hydraulic oil tank, hydraulic oil pipe and radiator.

    Hydraulic oil tube set 1 It includes hydraulic oil tube and connector

    Operating station set 1 It includes frame, balance valve, control valve, operating handle and throttle valve

    Air compressor power assembly set 1 Contains frames, engines, pulleys, belts Screw air compressor set 1 It includes frame, air compressor and radiator

    Conveyor belts plate 1 It is used to connect air compressor and drilling rig.

    60 drill pipe m 30 1.5m/pc

    Impactor branch 1 70

    Impact bit per 1 76
