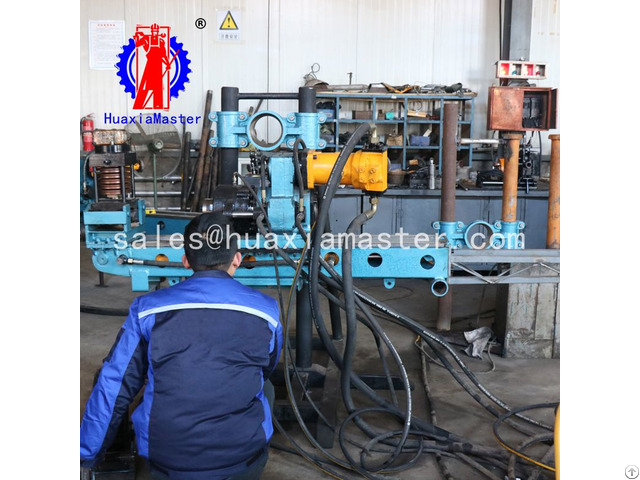

  • Ky 6075 Steel Strand Wire Exploration Drilling Rig For Metal Mine Machine Supplier China - China

    price: 18600.00 Dollar US$

    1 - Applications of KY-6075 steel strand wire exploration drilling rig for metal mine

    The fully hydraulic steel strand wire core drilling rig is suitable for the chamber with complete roof, no broken, no quicksand and no support.

    ·Horizontal drilling: the chamber requires the height is 2000mm and the width is 2000mm.

    ·Horizontal lateral drilling: the chamber requires the height 2000mm and the width is 4000mm.

    ·Vertical upper and lower angle drilling: the chamber requires the height is 4000mm and the width is 2000mm.

    2 - Features of KY-6075 steel strand wire exploration drilling rig for metal mine

    ·It is small in size, light in weight and easy to install.

    The steel strand wire coring can work in all direction and core without pulling out drill pipe.

    ·Three parts: the main engine, the pump station, the operating floor.

    ·It can work in the original transportation and prospecting tunnel, and play a protective role in the overall structure of the mine.

    It can also be used for 0-90 degree surface drilling.

    ·The drilling rig is arranged with great flexibility, mechanically screwing and unscrewing drill pipe, so it will reduce labour costs and improve work efficiency.

    ·With the box feeding frame, gripper tightening, power head rotary drilling, oil cylinder delivery tool, you can get rid of the heavy drilling tower.

    ·It has the function of linkage, centralized control through operating floor, simple and safe, and no speed regulation.

    ·Hollow shaft design, drill pipe length is not restricted by drilling rig feed stroke.

    ·It is easy to disassemble, and the relocation is convenient.

    Three kinds of drilling pipe, Φ49-Φ60-Φ75, can be used on the same machine.

    It takes only 15 minutes to replace it.

    ·Compact operating table; oil pump, water pump, power supply centralized .

    ·The drawing column is suitable for the high and low lanes.

    ·The imported oil meter line is subjected to high pressure and its softness will reduce the pressure pulse of high pressure oil, so that it can make the pointer of hydraulic oil table more stable, and can detect the formation and rock changes in time.

    ·The special custom oil temperature cooler, high pressure oil cooling soon and low temperature application can protect the service life of motor, oil pump and rubber seal.

    3 - Advantages of KY6075 steel strand wire exploration drilling rig for metal mine

    ·It reduces drill hole wear, twist and collision with the hole wall and prolongs the life of the drill bit.

    ·To reduce the auxiliary time of the drill pipe and to increase the time of drilling, the deeper the drill hole is, the more significant the economic effect is.

    ·Reduce the balance between the washing fluid and the pressure of the hole wall, so as to reduce the accident in the hole.

    ·Reduce the degree of borehole bending and improve the quality of drilling.

    Reducing labour costs.

    ·Reduce the mechanical wear and increase the service life of driller.

    ·Coring hole jam can immediately solve; this improves coring efficiency.

    ·Reduce wear and tear of drill pipe thread, prolong drill pipe life and reduce pipe consumption.

    ·It is good for drilling complex formation and avoiding collapse of hole wall.

    ·Steel cable can be used to put the clinometer in drill pipe to carry on the survey.

    4 - Specifications of drilling tool

    ·Drill pipe 46mm, core pipe 48mm, drill bit 49mm, reamer 49.5mm, recover core 29mm.

    ·Drill pipe 56mm, core pipe 58mm, drill bit 60mm, reamer 60.5mm, recover core 41.5mm.

    ·Drill pipe 71mm, core pipe 73mm, drill bit 75mm, reamer 75.5mm, recover core 49.5mm.

    5 - Specifications of KY-6075 steel strand wire exploration drilling rig for metal mine

    Drilling angle tunnel/surface/ 0-360 degrees

    Drilling depth 46mm steel drill rod*600m/56mm Steel drill rod*550m/71mm Steel drill rod*500m

    Spindle rotating number 800-1060 r/min

    Spindle output torque 184-550n.

    m(torque platform test)

    Rated feed force 60kn (torsion platform test)

    Feed stroke 900mm

    Motor power oil pump motor 55kw, pump motor 11kw

    Motor model L6V80 (Guizhou force source)

    Oil pump model 80YCY14-1B plunger pump/ 10TCY14-1

    Drilling rig weight 380kg

    Drilling rig size 1600mm*300mm*400mm

    Operating station weight 60kg

    Operating station size 610mm*530mm*1150mm

    Pump assembly weight 550kg

    Pump assembly size 1340mm* 560mm*1010mm Shandong Master Machinery Group Co., Ltd.
