1 - The features of KY-150 hydraulic drilling rig

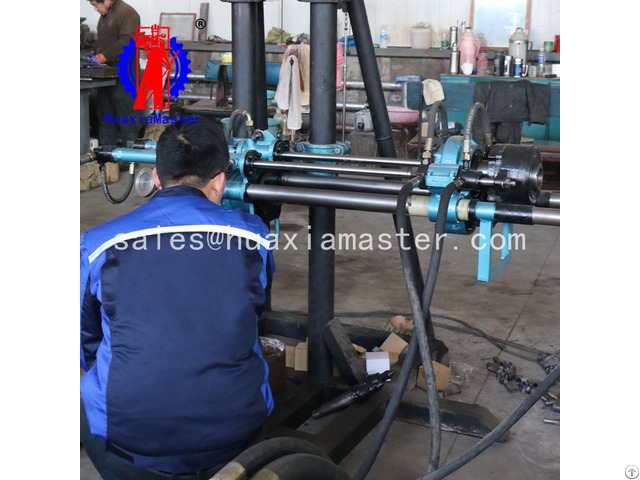

KY-150 full hydraulic drilling rig is easy to disassemble and convenient to transport.

The drilling rig has flexible arrangement, and the drilling pipe can be dismantled mechanically, which can reduce labor cost and improve work efficiency.

Also the rig has infiniTely variable speeds.

KY-150 full hydraulic drilling rig has the function of linkage.

It is simple and safe to control the rig through the operation platform.

The spindle of the gyration adopts the through hole structure.

The length of the drill pipe is not restricted by the drilling rig, and it can also be applied to diamond wire-line coring drilling.

KY-150 full hydraulic drilling rig uses full hydraulic operation to make the structure more reasonable to make the function more complete.

It uses variable motor which has wide speed regulating range.

This drilling rig applies to high speed drilling of alloy steel stone and hard alloy drilling at low speed, and it is suitable for any inclination drilling in the tunnel or surface drilling.

2 - The components of KY-150 drilling rig

The KY-150 fully hydraulic drilling rig adopts the structure of full hydraulic power head, and consists of three parts: main engine, pump station and operating floor.

3 - The specifications of KY-150

Drilling depth 150(33 steel drill rig)/120(43 steel drill rig)/150(43 aluminum alloy steel drill rig)

Borehole diameter 36.5mm/46.5mm

Borehole angle 0°-360°

Spindle output torque 87-300 n.

m

Spindle speed 400-1400 r/min

Rated pull force 30 kn

Rated pull speed > 0.3 m/s

Oil supply mode double gear pump

Hydraulic oil mode antiwear hydraulic oil YB-N46/YB-N32 (winter)

Motor model manual variable motor A6V55MA

Motor specifications Y180M-4/18.5 kw

Equipment weight main engine166kg/backbone 40kg/operation floor 86kg/power car 210kg
