1 - Brief introductions of KQZ-100D pneumatic-electric DTH drilling rig

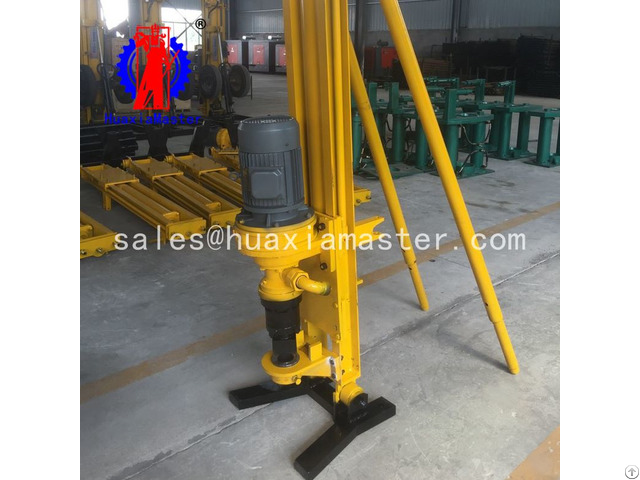

KQZ-100D pneumatic-electric DTH drilling rig designed for water conservancy projects and building materials sites.

It is widely used for drilling in all kinds of rock stratum and drill hole.

For example, water conservancy and construction slope treatment.

KQZ-100D pneumatic-electric DTH drilling rig is an impact rotary drilling rig.

Its internal structure is different from the general drilling machine.

Its gas distribution and piston reciprocating mechanism are independent with each other.

The front end is directly connected to the bit, and the back end is connected to the drill pipe.

When it is divided into the hole, the impactor will rotate in hole.

the piston (hammer body) in the impactor is made reciprocating to strike the drill tail through the valve, making the drill produce a kind of gyration force to the rock bottom.

2 - Features of KQZ-100D pneumatic-electric DTH drilling rig

Small volume, light weight, suitable for large and medium-sized drilling rig can not workplace, convenient and flexible.

3 - Specifications of KQZ-100D pneumatic-electric DTH drilling rig

KQZ-100D

Borehole diameter mm 65-150

Borehole depth m 20-25

Rotating speed of drilling tools r/min 90

Air consumption m³/min 6-8

Cylinder diameter mm 150

Drilling pipe mm 50/ 60

Motor power kw 4

Main engine length mm 2400

Main engine weight kg 224
