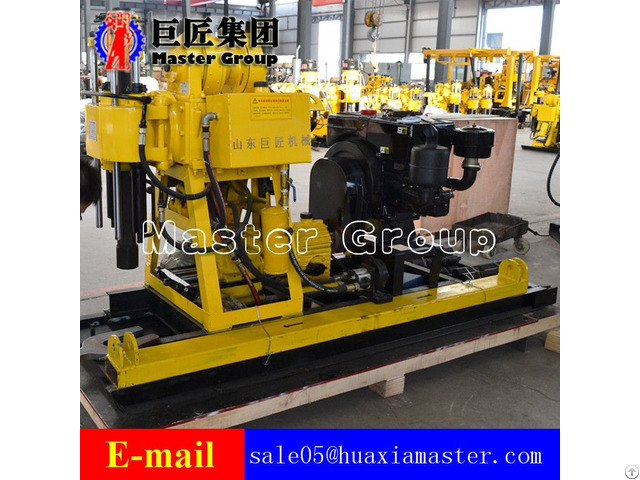

Hz 200yy Hydraulic Rotary Portable Rock Drilling Machine - China

1 - Features of HZ-200YY hydraulic drilling rig

the highest speed can reach 1045r/min with 5 gears, which improves drilling efficiency

adopted 53x59 drilling rod, which has high rigidity and strong delivery torque.

equipped with national patent technology-taper clutch, made the machine easy to operate and free of maintenance.

using large module planetary gear and adding supporting frame, which highly increased hoisting and braking ability of the winch.

vertical spindle are fixed by four groups of bearings to ensure that the rotary machine is rigid enough for gravel layer and other complex geological conditions.

2 - Parameters of HZ-200YY hydraulic drilling rig

Max open hole diameter 300mm

End hole diameter 75mm

Drill rod diameter 60mm

Drilling angle 90

Drill weight (without power) 975kg

Triangle conveyer belt B950 * 4; B1700 * 3

Main machine moving distance 300mm

Power Diesel engine 22HP Electric motor 15kw

Spindle

Spindle speed 64/128/287/557r/min

Spindle stroke 450mm

Hoist

Max.

lifting capacity 2400kg

Single line lifting speed 0.41/0.82/1.64 m/s

Wire rope diameter 13mm

Wire rope length 35m

Reel diameter 140mm

Hug floodgate diameter 260mm

Hug floodgate belt width 70mm

Mud pump

Type Horizontal single-urn twin-action

Displacement Diesel engine 170L/min Electric motor 150L/min

Maximum pressure 3mpa

Work pressure 1.5mpa

Outlet pipe diameter 30mm

Inlet pipe diameter 40mm

Triangle conveyer belt B1728mm
