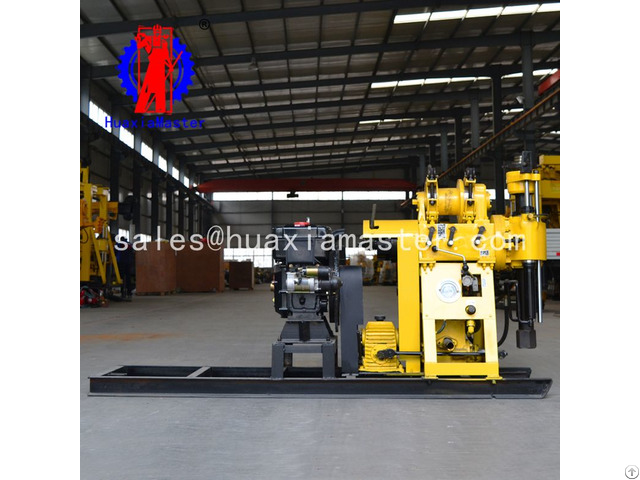

  • Hz 200y Hydraulic Rotary Drilling Rig Price For China - China

    price: 8200.00 Dollar US$

    1 - Applications of HZ-200Y hydraulic drilling rig

    Geological survey and exploration, road and high-rise building foundation exploration, and all kinds of concrete structure inspection holes, river embankments, subgrade grouting holes, drilling and direct grouting, civil water well and ground temperature central air conditioners.

    2 - Features of HZ-200Y hydraulic drilling rig

    vertical spindle are fixed by four groups of bearings to ensure that the rotary machine is rigid enough for gravel layer and other complex geological conditions.

    adopts 53*59 hexagon drilling, which has high rigidity and strong delivery torque.

    the machine is equipped with national patent technology-taper clutch, with the charactristics of strong transmission troque, easy operation and free of maintenance.

    we are the first one to equip mud pump with the flow 160L/min in China so that it will save cost and also make the machine compct, moblie and light in weight.

    for the winch, we use large module planetary gear and add supporting frame, greatly increasing hoisting and braking ability of the winch.

    3 - Specifications of HZ-200Y hydraulic drilling rig

    HZ-200Y hydraulic drilling rig

    Drilling depth 200m

    Max open hole caliber 300mm

    End hole caliber 75mm

    Drill rod caliber 60mm

    Drilling angle 90°-75°

    Drill weight(without power) 1100kg

    Triangle conveyer belt B950*4 B1700*3

    The main machine moving distance 300mm

    Power Diesel engine 22HP Electric motor 15kw

    Spindle

    Spindle speed 64/128/287/557 r/min

    Spindle stroke 450mm

    Hoist

    Max.

    lifting capacity 2400kg

    Single line lifting speed 0.41/ 0.82/1.64 m/s

    Wire rope caliber 13mm

    Wire rope length 35m

    Hug floodgate caliber 260mm

    Hug floodgate belt width 70mm

    Mud pump

    Type Horizontal single-urn twin-action

    Displacement Diesel engine 170L/min

    Electric motor 150L/min

    Maximum pressure 3Mpa

    Work pressure 1.5Mpa

    Inlet pipe caliber 40mm

    Outlet pipe caliber 30mm

    Triangle conveyer belt B1728mm

    Mud pump

    Type CBT—F—314

    Triangle conveyer belt B1100× 1
