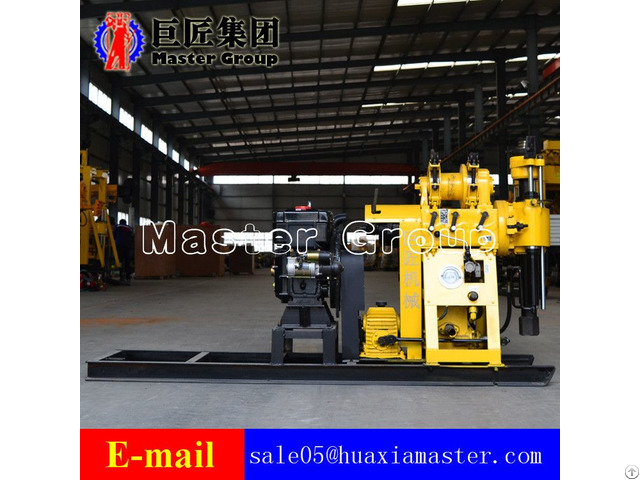

Hz 200y Hydraulic Drilling Machine Portable Water - China

1 - The applications of HZ-200Y hydraulic water well drilling rig

Made in China water well,field irrigation well, engineering water well,precipitation well and so on; geological survey and exploration, road and high-rise building foundation exploration, and all kinds of concrete structure inspection holes, river embankments, subgrade grouting holes, drilling and direct grouting.

2 - The features of HZ-200Y hydraulic water well drilling rig

53 x 59 drilling rod adopted, high rigidity and strong delivery torque

The machine is equipped with national patent technology---taper clutch, with characteristics of strong transmission torque, easy operation and free maintenance.

For the winch, we use large module planetary gear and add supporting frame, greatly increasing hoisting and braking ability of the winch.

Vertical spidle are fixed by four groups of bearings to ensure that the rotary machine is rigid enough for gravel layer and other complex geoloical conditions.

We are the first one to equip mud pump with the flow 160L/min in China .

So the features will achieve cost saving, compact structure and portable.

3 - The specifications of HZ-200Y drilling rig

HZ-200Y drilling rig

Drilling depth 200m

Maximum open hole diameter 300mm

End hole diameter 75mm

Drill pipe diameter 50mm

Drilling angle 90°

Drilling rig weight (excluding power) 1100kg

Triangular belt B950×4 B1700×3

Active move range 300mm

Power Diesel engine 20HP   Electric motor 15kw

Spindle

Spindle rotating speed 64 128 287 557 r/min

Spindle stroke 450mm

Windlass

Maximum lifting power of a single rope 2400kg

Maximum lifting speed of a single rope 0.41/0.82 /1.64m/s

Wirerope diameter 13mm

Drum capacity 35m

Band type break diameter 260mm

Band type break belt width 70mm

Mud pump

Model horizontal single-urn twin-action

Displacement diesel engine 170L/min   electric motor 150L/min

Maximum pressure 3mpa

Work pressure 1.5mpa

Water inlet pipe diameter 40mm

Water outlet pipe diameter 30mm

Triangular belt B1728mm

Mud pump

Type CBT—F—314

Triangular belt B1100× 1
