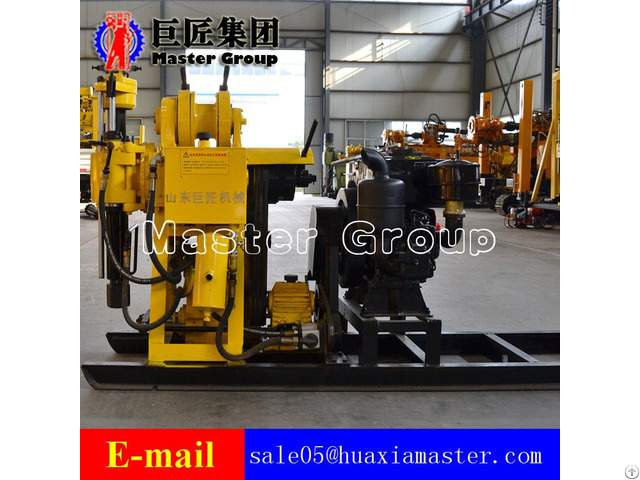

Hz 130y Hydraulic Water Well Drilling Rig Manufacturer - China

1 - The applications of HZ-130Y water well drilling rig

Field irrigation well, civil use water well, ground temperature central air conditioning and so on; geological survey and exploration, basic exploration for roads and high-rise buildings, inspection holes for various concrete structures, river embankments, subgrade grouting holes.

2 - The features of HZ-130Y water well drilling rig

The hoisting machine is equipped with a holding frame to form a double-sided supporting star wheel structure, can withstand strong impact.

This machine adopts the conical clutch of national patent technology, which has the prominent characteristics of large transmission torque, convenient operation and no maintenance.

Using 53 ×59 six party active drill rod, strong rigidity, large torque transmission.

Four groups of bearings are positioned in the vertical shaft box to ensure that the gyration is rigid enough to cope with the complex geological conditions such as the gravel layer and the pebble layer.

3 - Specifications of HZ-130Y water well drilling rig

HZ-130Y drilling rig

Drilling depth 130m

Maximum open hole diameter 220mm

End hole diameter 75mm

Drilling pipe diameter 50mm

Drilling angle 90°-75°

Weight 750kg

Power Diesel engine 13.2kw

Spindle

Spindle rotating speed 142 285 570r/min

Spindle stroke 450mm

Windlass

The maximum weight of a single rope 1600kg

Lifting speed of a single rope 0.41 0.82 1.64m/s

Drum diameter 140mm

Wire rope diameter 13mm

Drum capacity 27m

Mud pump

Model Horizontal single cylinder double action

Displacement ( diesel and electric, respectively) 95L/ MIN, 77L/MIN

Working pressure 0.7mpa

Maximum pressure 1.2mpa

Water outlet diameter 20mm

Water inlet diameter 30mm

Triangle belt diameter B1575mm
