Huaxiamaster Spj 300 Water Well Drilling Rig For Sale - China

price: 100.00 Dollar US$

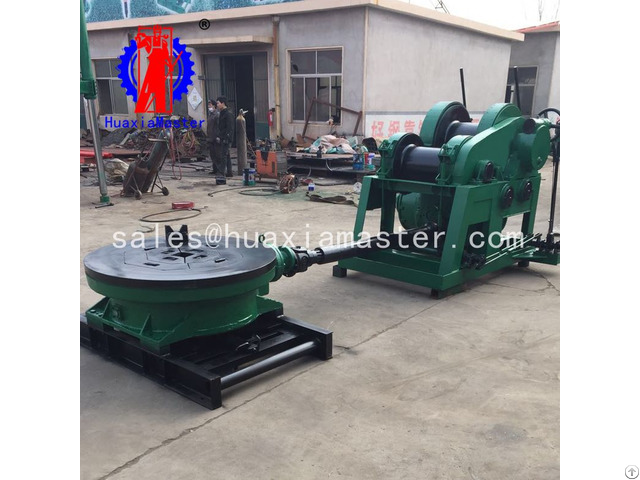

Huaxiamaster Spj 300 Water Well Drilling Rig For Sale

Products Photos Catalog Huaxiamaster Spj 300 Photos Catalog

1 - The features of SPJ-300 water well drilling rig

·SPJ-300 water well drilling rig is powered by electric motors.

·The drilling rig is a bulk rotary table drill, which is mainly used for middle Quaternary, fine grained strata and soft rock layers.

The main usage is: the hydraulic geological conditions at the bottom of the exploration and survey; the agricultural irrigation, the industrial water use, the underground tunnel ventilation, the bridge and other engineering drilling.

·When drilling rig works, mud flushing fluid (positive circulation) and rotary table are used to drive the drilling tools to rotate.

Use winch system to realize decompression drilling, lifting drilling, down pipe, impact sampling, vertical drilling tower, etc.

·The drilling rig is equipped with fine adjustment drilling mechanism and mechanical screwing down drilling tool device

2 - The specifications of SPJ-300 water well drilling rig

Borehole diameter 500mm-1500mm

Drilling depth 300m

Maximum output torque 18kn.

m

Active drilling pipe 108*108*12mm

Drilling pipe 89mm

Main windlass lifting power 30kn

Assistantwindlass lifting power 20kn

Rotary table latus rectum 500mm

Rotating speed (forward and inversion) 40/70/128r/min

Height of the drilling tower 13m

Gross weight (excluding drill rod) 9t

External dimension 2200*6000*13000mm

Drilling tower Type A / hydraulic drill tower

This product is widely used inwater conservancy project, pile foundation engineering, bridge construction and so on


Company Contact:


  • Phone: 8619806265526

  • Address: Wu taizha road, guanhe street,, Jining , Shandong , China

  • Email: Email


Published date: July 18, 2019

  • Business Description: Group for a long time in line with the giants of masters of "the spirit of craftsman, creates quality" concept of enterprise development, challenge pragmatic development, now has developed into a collection of research and development design, manufacture and market sales in the integration of many company joint operation of collectivization, giant group members have jining machinery research institute, shandong machinery manufacturing co., LTD., the giants of the giants and huge machinery co., LTD., shandong province, China, etc.
