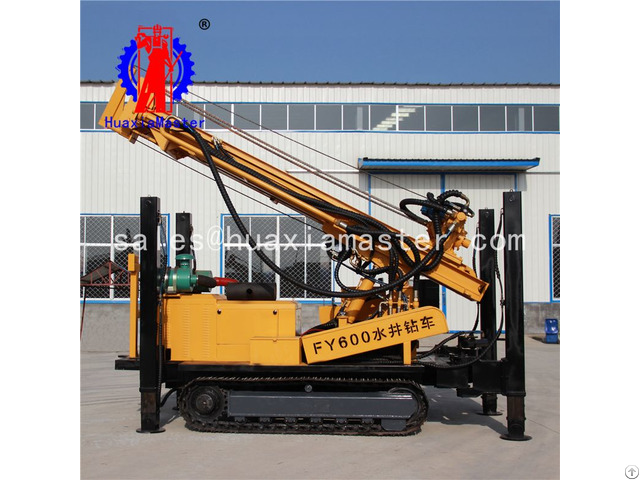

Fy600 Crawler Pneumatic Water Well Drilling Rig Machine Manufacturer For China - China

1 - The applications of FY600 crawler pneumatic water well drilling rig

·drilling with large diameter and deep drilling footage

·civil engineering drilling

·geothermal drilling

·fast, flexible and efficient

2 - The specifications of FY600 crawler pneumatic water well drilling rig

Model FY600

Gross weight T 12

Dimension mm 5400*2100*2850

Aperture mm 140-350

Drilling depth m 600

Feed stroke mm 6600

Travel speed km/h 2.5

Grade ability max.

30°

Rising height from ground mm 250

Wind pressure mpa 1.7-3.5

Air consumption m³/min 17-35

Engine power kw 115

Rotation speed rpm 45-110

Rotation torque n.

m 8500-10050 Shandong Master Machinery Group Co., Ltd.

Sales Manager: Candice Cheng

QQ: 1447852867

Tel: 0086-537-2335787

Mob: 0086-18865479502

Wechat: 008618865479502

Whatsapp: 0086188654795 02
