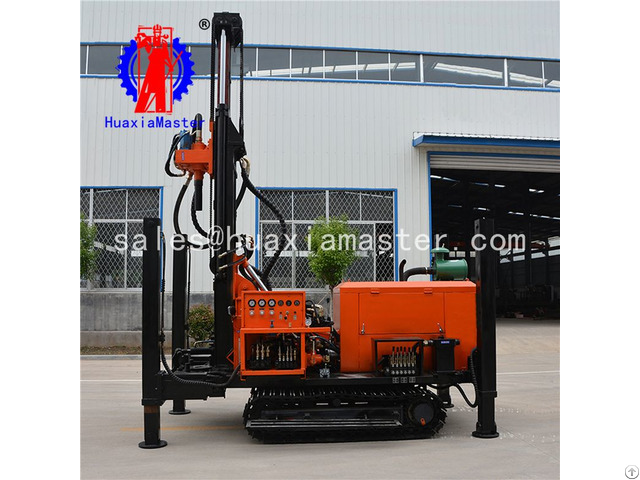

Fy200 Crawler Pneumatic Water Well Drilling Rig Machine Manufacturer For China - China

1 - The applications of FY200 crawler pneumatic water well drilling rig

·civil engineering drilling

·drilling with large diameter

·deep drilling footage ·fast, flexible and efficient.

·geothermal drilling

2 - The specifications of FY200 crawler pneumatic water well drilling rig Model FY200

Gross weight t 4.6

Dimension mm 3800*1600*2450

Aperture mm 140-325

Drilling depth m 200

Feed stroke mm 3000

Travel speed km/h 2.5

Grade ability max.

30°

Rising height from ground mm 250

Wind pressure mpa 1.7-3.0

Air consumption m³/min 17-35

Engine power kw 65

Rotary speed rpm 50-70

Rotation torque n.

m 5000-6500 Shandong Master Machinery Group Co., Ltd.

Sales Manager: Candice Cheng

Tel: 0086-537-2335787

Mob: 0086-18865479502

Wechat: 008618865479502

Whatsapp: 0086188654795 02

QQ: 1447852867

Company Contact:

• Posted By: Shandong Master Machinery Group Co.,Ltd.

• Phone: 18865479502

• Address: No.47,Jinyu Road,Jining City,Shandong Province,China, jining , China , China

• Email:

• Website: http://www.sdjujiang.com

• Business Description: Shandong Master Machinery Group Co., Ltd. is located in Jining city, Shandong Province , which is known as "The hometown of Confucius, formal state" reputation .

  Company east to “ Oriental holy city”of qufu, west to “hero”of liangshan, “qilu graceful” weishan lake in the south, "wuyue exclusive" Tarzan in the north, The martial arts are prosperous, and the people are geeky.

  convenient transportation like Jining airport, beijing-shanghai high-speed railway, lunan high-speed railway, beijing-taiwan expressway, zhanlan high-speed crisscross, , communication developed.

  Shandong Master Machinery Group Co., Ltd. as parent company and head office hold the spirit of "delivering the spirit of craftsman and the quality of the great craftsman" for a long time , Pragmatic development will strengthen our progress.

  Nowadays, it has developed into a collectivized enterprise integrating r&d design, production processing and marketing.

  The group company mainly provides solutions for engineering and mine construction.

  With high quality products, good service and honest reputation, our company has established a solid material supply relationship with several universities, research institutes, design institutes and reconnaissance institutes.

  And stand out from a large number of national key project construction projects , The market performance is among the best in the industry.

  The group company actively responds to the national "One Belt And One Road" policy to go abroad.

  Drilling rig products are now sold to many countries in Europe, central Asia, southeast Asia and Africa.

  Our company's independent brand "HuaxiaMaster" has become a well-known brand for customers.

  It is a pleasure to have friends coming from afar.

  We warmly welcome friends from all walks of life to visit our company and work together to create a better tomorrow.
