China Qz 3 Portable Geological Engineering Drilling Rig Manufacturer - China

1 - The Brief Introductions of QZ-3 geological engineering drilling rig

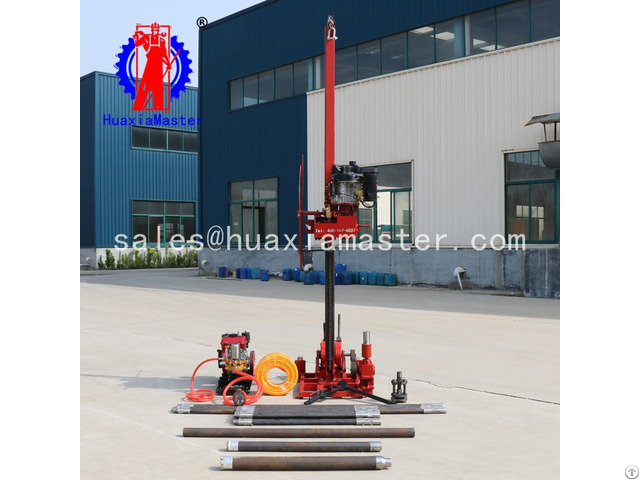

The QZ-3 geological drilling rig is independently developed by Shandong Master Machinery Group Co., Ltd., which is a portable multi-purpose drilling rig.

The QZ-3 portable drill is equipped with a hoist, which is more convenient for geological drilling and lifting.

It can do standard drilling hole, earth sampling and cone penetration with the heavy hammer.

The QZ-3 portable geological drilling rig uses diesel power, and it is more convenient to purchase oil.

The rig is reasonable in design, advanced in structure, easy to assemble and disassemble, small in size, light in weight and easy to transport, which brings great convenience for field investigation and construction.

2 - The Specifications of QZ-3 geological engineering drilling rig

QZ-3 portable geological engineering drilling rig

Borehole diameter (mm) 46-110

Drilling depth(m) soil Layer 110：15-20m

lithosphere 91：20-25m

lithosphere 75：25-30m

lithosphere 60：30-40m

lithosphere 46：40-50m

Drilling pipe diameter (mm) 30

Torque(n.

m) 180

Dimension(l*w*h) 680*1200*3800(highly customizable)

Weight(kg) 165

3 - Configuration List of QZ-3

Item Specifications Unit Quantity Remarks

Base QZ-3 pc 1 Geological engineering drilling rig

Winding engine pc 1 Drilling tower pc 2 Manual windlass pc 1 Diesel engine pc 1 Gear box pc 1 Drilling pipe including joint 30*1000 pc 15 Drill pipe

Drilling pipe including joint 30*2000 pc 5 Reducing nipple 58/38 pc 1 60mm core drill tool

Core barrel 58*800 pc 1 Core barrel 58*1500 pc 1 Diamond bit 60 pc 1 Reducing nipple 73/38 pc 1 75mm core drill tool

Diamond bit 75 pc 1 Core barrel 73*800 pc 1 Safety clamp Tool

Pipe wrench

Vulnerable parts

Safety plate pc 1 Drill rod tong Oil seal pc 2
