Bxz 1 Backpack Core Drilling Rig - China

1 - Brief introductions of BXZ-1 backpack core drilling rig

BXZ-1 is a core drilling rig that can drill up to 20 meters.

The portable design allows the rig to fit in tighter spaces than traditional larger drill rigs but still has plenty of power to get the job done.

This rig is perfect for drilling in remote locations.

2 - Applications of BXZ-1 backpack core drilling rig

·mineral prospecting

·geotechnical engineering

·geoscientific research

·tunnel lining

·inflected arch detection

·highway engineering geological exploration

·hydraulic engineering geological exploratory

·oil exploration

·lode prospect

3 - Features of BXZ-1 backpack core drilling rig

·portable : a complete set of BXZ-1 can be packed into a backpack that can be carried by one adult

·efficiency and effective: BXZ-1 can work in almost any type of soil conditions

·easy to disassemble

·simple to operate

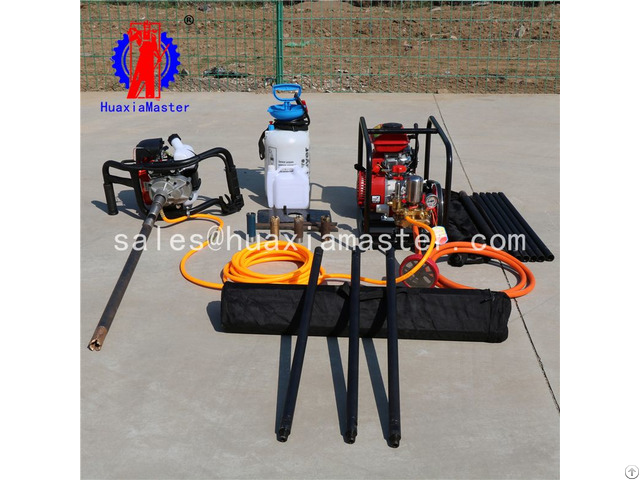

4 - Configuration list of BXZ-1 backpack core drilling rig

Item Parameter Unit Quantity

Drilling rig 3.2hp/mitsubishi set 1

Drill pipe 33*700mm pc 28

Drill joint 33*100mm pc 28

Core barrel 33*600mm pc 1

Reducing nipple pc 1

Alloy bit 33mm pc 1

Compact bit 33mm pc 1

Diamond bit 33mm pc 1

Manual mud pump set 1

Mud pump ( gasoline engine) high pressure set 1

Maintenance kit set 1

Outlet hose pipe set 1

Inflow water filter pc 1

Inlet hose pipe set 1

Oil & gasoline mixing container pc 1

Safety clamp pc 1

Pipe wrench pc 1

Specialized backpack pc 1
