Zlj350 Grouting Reinforce Drilling Rig - China

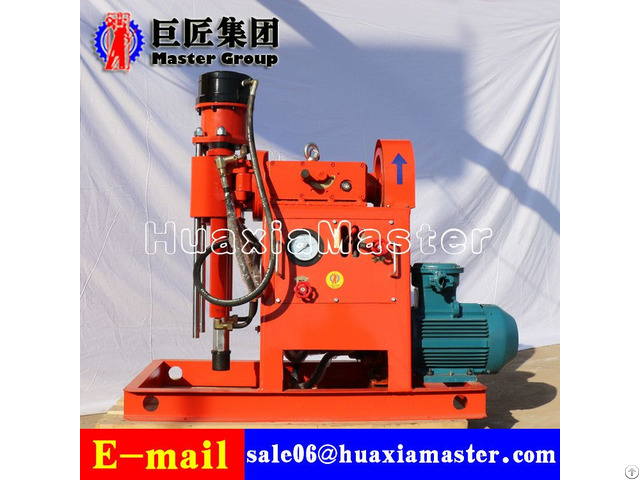

grouting reinforce drilling machine slope supporting Multi-angle drilling mine drilling rig 1 - The brief introductions of ZLJ350 ZLJ 350 grouting Reinforce drilling machine is mainly used for grouting Reinforcehole.

ZLJ350 drilling machine work for under mine, tunnel, subway, slope support.

The machine can work different angles of grouting Reinforceand drilling hole.

This drill rig adopts mechanical drive, hydraulic feed with small size, light weight, The rig is reliable and convenient to operate.

2 - The specifications of ZLJ350 Drilling diameter 50-113mm

Drill rod caliber 42mm

Noncoring bit 50-113mm

Drilling depth 150m

Vertical rated speed 340 /192/112 r/min

Vertical shaft torque rating 130/ 230 /400 n.

m

Main shaft angle 0-360

Spindle stroke 400mm

System pressure rated 8mpn

Feed force 9kn

Elevating power 12kn

Winch lifting capacity 7.35kn

Capacity of drum 26.8m

Diameter of wire rope .

85mm

Oil pump type YBC-12/80

Motor power 5.5kw

Dimension 1230*630*1280mm

Total weight 430kg
