Zf 25 11a Hydrophone - China

price: 130.00 Dollar US$

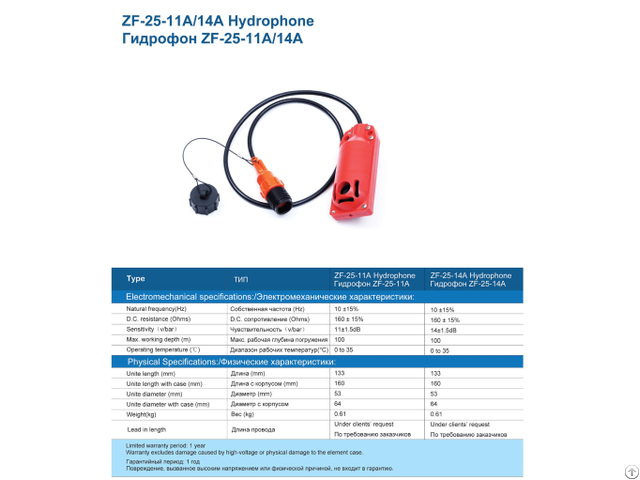

Zf 25 11a Hydrophone

Products Photos Catalog 11a Hydrophone Photos Catalog

Type

Electromechanical specifications

Natural frequency(Hz) 10±15%

D.

C resistance(Ω) 160±15%

Sensitivity(v/bar) 11±1.5dB

Max.

working depth(m)100

Operating temperature 0 to 35

Physical Specification

Unite length(mm) 116

Unite length with case(mm) 160

Unite diameter(mm) 53

Unite diameter with case(mm) 64

Weight(kg) 0.4

Lead in length Under clients'request

Limited warrantly period ：1 year

Warrantly excludes damage caused by high-voltage or physical damage to the element case.


Company Contact:


  • Phone: 86-10-87576701

  • Address: Rm1205, 3rd Building, Soubao International Centre,No.16 Nansanhuanxi Rd, Fengtai District ,Beijing, , beijing , china , China

  • Email: Email


Published date: August 12, 2016 - Modified date: August 12, 2016

  • Business Description: Capacity：

    Based on dust free geophone element workshop and geophone string assembly line, ZF can manufacture 2.5 million geophone elements and 0.1 million typical geophone strings per year, while more that 1.09 million seismic connectors and other spare parts are manufactured by ZF every year.

    ZF cable department mainly produces geophone cables, seismic cables and custom cables, with a capacity up to 37, 000 KM of typical digital cables and leader wires per year.
