Jk810 All In One Hydraulic Dth Drilling Rig - China

price: contact company for price

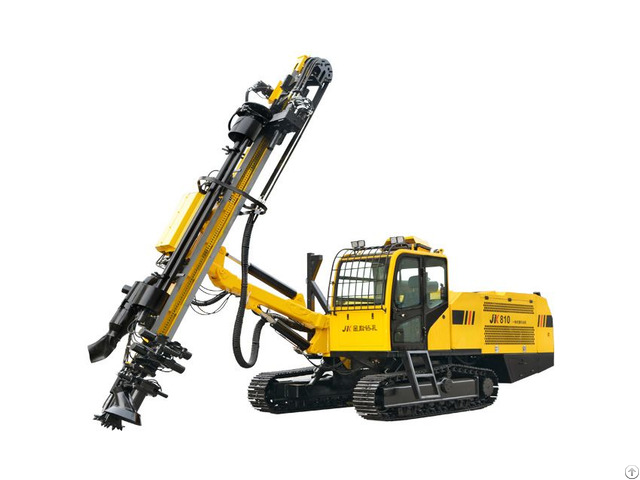

Jk810 All In One Hydraulic Dth Drilling Rig

Products Photos Catalog Jk810 Hydraulic Dth Photos Catalog

high efficiency All In One DTH Drilling Rig

With less price and more equipment, JK810, the most cost-effective representation product of JK Drilling and Atlas Copco as the solution to the integration of drilling rig and air compressor, is set to revolutionize your imagination.

JK810 is an All-In-One hydraulic DTH drilling rig, which brings you more automation, higher working efficiency, better reliability and simpler operation.

The FOPS-approved cabin and automatic pipe handling system come standard.

Heavy-duty undercarriage with wide tracks ensures both extreme maneuverability and improved safety.

The hydraulic dust collecting system meets the latest environmental protection regulations and it's a reliable solution to realize the modern green mining.

General Weight kg 14300 Length mm 9920 (transport) Width mm 2400 Height mm 3300

Undercarriage Track width mm 350 Ground clearance mm ≥400 Track oscillation ° ±10° Walking speed km/h 2 (low) / 3 (high) Grade ability ° 20°

Engine Model QSL8.9-C360-30 Type Water-cooled six-cylinder EFI diesel engine Rated power kw/rpm 264/2100 Fuel tank capacity L 450-500


Company Contact:


  • Phone: +8618731372225

  • Address: No.142, Zhonglou Street, Xuanhua District, Zhangjiakou City, Hebei , China

  • Email: Email


Published date: April 10, 2019

  • Business Description: Zhangjiakou Xuanhua Jinke Drilling Machinery Co., Ltd (JK Drilling) is a large enterprise specialized in development and manufacture of all kinds of DTH Drilling Equipment.

    The major products include All-In-One type and separate type DTH rock drilling rigs, DTH well drilling rigs and construction drilling rigs.

    The DTH rock drilling rigs are widely used in blasthole drilling of mining, hydropower, transportation and defense projects, as well as harbor and channel construction; DTH well drilling rigs are specialized in drilling the boreholes of large diameter and depth, for instance, water well drilling and geothermal well drilling.
