Khyd110 5 5kw Electric Motor Rock Drilling Rig - China

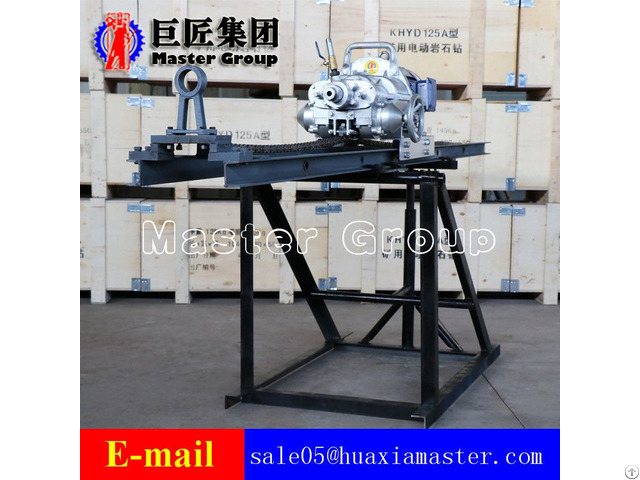

1 - The brief introductions of KHYD110 rock drilling rig

The machine can be fitted with drill stand, and can be drilled horizontally or upward in any direction.

In order to prolong the service life of the drill bit and improve the working conditions of the operator, wet drilled water can be used to discharge the powder and screw blade drills can also be used for dry draining.

In the operation of drilling rig, we only need to operate the handwheel, and the drilling rig can advance itself and return quickly.

2 - The Specifications of KHYD110 Model Unit KHYD110

Rated output power of motor kw 5.5

Rated voltage of motor v 380/660

Rated frequency of motor hz 50

Rated current of motor a 11.6

Motor speed r/min 1440

Motor phase number three phase communication

Rated working mode continuity

Drilling speed mm/min 280

Speed of return m/min Borehole diameter mm 42-80(rock)

Hardness range protodikonov`s scale of hardness f<10

Maximum drilling depth m 20(rock)

Weight of drilling rig (excluding runways, drill pipes, drills) kg 110

Dimension (length * width * height) mm 950*460*430
