Highling River Sand Cutter Suction Dredger - China

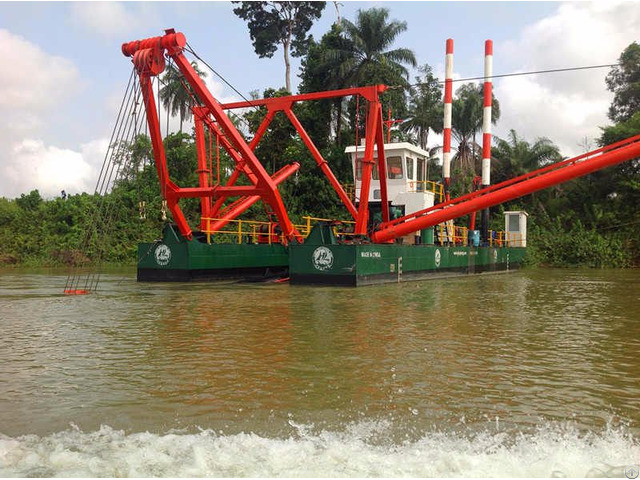

HL350 hydraulic cutter suction dredger (14inch 2000m3/h )

Dredger LOA 26.0m

Hull size(L×B×H) 19.0*7.5*2.0m

Main pontoon(L×B×H) 13.8*3.5*2.0m

Side pontoon (L×B×H) 19.0*2.0*2.0m

Structure Can be dismantle and re-assemble easily, box structure, lower delivery cost

Main engine brand & power Cummins /477kw

Auxiliary engine brand& power Cummins /224kw

Harbour generator 30kw/Cummins

Dredging pump Technology

Discharge pipe inner Dia.

350mm

Head 45m

Max.

dredging depth 11m

Water flow 2000m³/h

Solid sand capacity 400m³/h

Discharge distance 1500m

Cutter head Dia.

1450mm

Cutter power 70kw

Draught 1.4m

Displacement 180T

Hydraulic control system PLC Siemens

Wire rope pulling force (Lifting winch )*Quantity 80KN *1

Wire rope pulling force (Traversing winch )*Quantity 80KN *2

Operation room Adjustable chair, movable side-window, air condition, PLC system, signal lights and floodlights

Total weight 90T

Company Contact:

• Posted By: Shandong Highling Dredging Equipment and Machinery Co.,Ltd

• Phone: 86-0536-8679879

• Address: Binhai Economy Development Zone, weifang , shandong , China

• Email:

• Website: http://www.highlingdredger.com

• Business Description: Operating since 1992

  Shandong Highling Group was established in 1992 - With over 20 years development, we own three subsidiaries namely Shandong Highling Dredging Equipment and Machinery Co.

  Ltd, Shandong Haiyang Ore Machinery Manufacturing Co.

  Ltd and Shouguang Yongde Shipping Manufacturing Co.

  Ltd. Our group covers an area of 1, 500 acres, with more than 800 employees.

  So, our annual turnover reaches $60 million.

  Our products are of a great variety, including 500 to 20, 000 cubic meters/h large scale dredging and sand mining equipment, gold panning ship, sand transportation ship, multifunction service work boat, and more, which are widely used in sand-excavating, river dredging, channel maintenance and broaden, desilting, reclamation for channels and land, port construction and more.

  All our products can be according to clients requirements to form a complete ship machinery industry chain.

  Implementing Strict Quality Inspection

  Our company has been through ISO 9001 Quality System Certification and CE certification.

  The design, construction and quality inspection are according to the standards and regulations of CCS.

  And we have obtained 26 types of certificate of Utility Model Patent and 23 types of Certificate of Design Patent.

  Backed by Professional R&D and Technical Teams

  Highling Dredgers achieve first-class level in the world with Holland design and technology.

  Our company has research and development center, quality department and after-sales department.

  The number of staff is up to 800, including 50 senior engineers on dredger building and researching, 60 designers on machinery construction, 18 engineers on quality inspection, as well as 30 after-sales service engineers.

  Exporting Products Worldwide

  Our products are exported to more than 50 countries such as Bangladesh, Pakistan, India, Brazil, Argentina, Benin, Egypt, Poland, Nigeria, Ukraine, Indonesia, South Korea and other countries worldwide.

  By virtue of advanced technology, stable and reliable quality, our company has gained great honors from the domestic and foreign enterprises.

  Based on honest, mutual benefit and development, we warmly welcome you visit our company and cooperate with each other.

  Contact us today.
