High Quality Raymond Grinding Mill Price In China - China
price: 60000.00 Dollar US$
Introduction of Raymond Grinding Mill
Output powder size: 50-325 mesh
Low power consumption: 20 kw/t for 150 mesh Working Principle of Raymond Grinding Mill

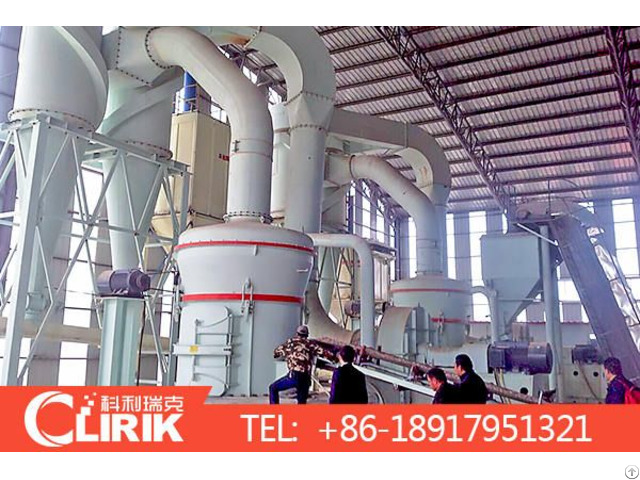

A whole powder grinding production line includes hammer crusher/jaw crusher, ultrafine mill, bucket elevator, hopper, screw feeder, grinder unit, in-built classifier, collector, pulse filter bag, discharging screw convey & valve, blower, muffler, air compressor, electrical control cabinet, sound-proof house.
For each parts, we will configurate different types and brand according to clients' practical needs.
Raw material was firstly crushed into small particles, and then sent to feeding hopper.
With screw feeder, such particles will go into grinder unit and displaced on the upper turn-plate.
Turn-plate is turning around the middle axis, and the grinder connects with reducer box, it is driven by the grinder motor.
The powders will be grind roller by roller, ring by ring, and fall down on the down turn-plate, and they will go through classifier with the airflow, as the high pressure produces negative wind.
All the powder will be classified by the high speed turning classifier impeller.
Qualified one will go into collector and filter bags.
Big one will fall down and be grind again.
Most of the powders will fall into the collector, and few of them will go into bag house with the airflow.
With the high pressure, the powder will fall down into screw conveyor and discharged from valve.
Advantages of Raymond Grinding Mill
1 - High efficiency.
Under the same finished final size and the same motor power, the capacity of the machine is twice as much as jet mill, mixing grinder and ball mill, and energy consumption decreased 30%.
2 - Long life cycle of spare parts.
The ring and roller are forged by special material with high utilization, the lifetime can reach 2-5 years for grinding calcite carbonate.
3 - High safety and reliability.
As no rolling bearings or screws in grinding cavity, there are no problems caused by bolts shedding or rapid wear of bearings and seal components.
4 - High fineness, flexible adjustment.
The final fineness of the grinding materials can be adjusted between 325 meshes and 2500 mesh (47-5 micron), and the product fineness can reach D97≤5μm.
5 - Environment friendly.
The whole production is equipped with the dust removal system to ensure that the grinding powder is not discharged and the environmental pollution is avoided.
Company Contact:
- Posted By: Shanghai Clirik Machinery Co.,Ltd.
- Phone: +862120236178
- Address: No.19, Fuqing Road, Heqing Town, Pudong New District, Shanghai, China., Shanghai , China , China
- Email:
- Website: https://www.carbonblack-process.com/
Published date: February 18, 2019 - Modified date: February 18, 2019
- Business Description: Shanghai Clirik Machinery Co., Ltd. Is located in Pudong New District of Shanghai, China.
As a pioneer enterprise, our company is specialized in research, manufacture and sales of all kinds of mining equipment.
We are the manufacturer of roller mill, stone crusher and etc.
Our company has already formed a full set of modern production line, equipped with intelligent, standardized testing and controlling laboratories, and owned a professional team, for R&D, production, sales and service.
