Frp Double Wall Petroleum Tank Equipment - China

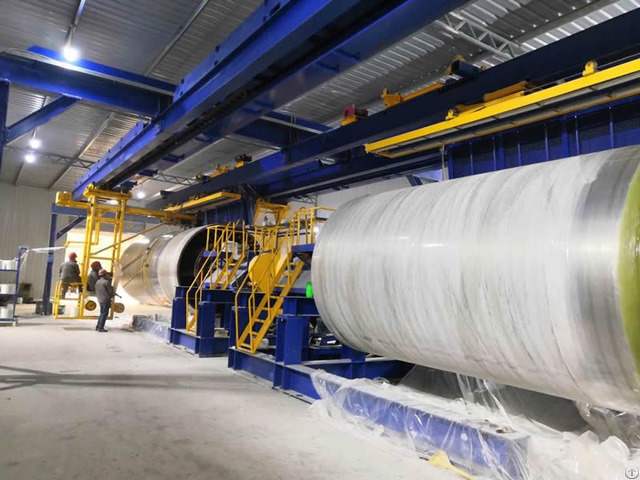

Double wall spraying (winding) production line

Production line composition: The production line mainly consists of a walking machine head, a tail of a walking machine, a spraying trolley, spray gun, and control system.

1 - Tank diameter: DN1000-3000mm 2 - Tank length: ≤12000mm 3 - Main shaft rotation speed: 0～5rpm/min 4 - Winding trolley max speed: 1.2m/min 5 - Spray width: 200mm 6 - Total installed capacity: 20KW 7 - Equipment occupied area：L: 22000mm, W: 10000mm。 8 - Control System: PLC control S/F (F/F) double-wall spraying (winding) equipment is a production equipment for steel or reinforced glass fiber(FRP) double-wall structure oil storage tank.

The spraying equipment produced by our company is precisely controlled by PLC numerical control to realize automatic spraying (winding).

The width of spraying (winding) can be strictly controlled, so that the wall thickness of spraying (winding) layer is uniform, there is no lapped gap phenomenon, and parameter input is very convenient.

easy to use.

The PLC (computer) CNC platform adopts the Xinjie touch screen, input the required width, the program can be automatically run as required, and the human-machine interface is friendly.

The steel card is simple and reliable, and has a weighting device.

The weight of the tank is completed by simple adjustment to make the operation stable.

The spindle power is sufficient to adopt the frequency conversion stepless speed regulation mode, with brake device to meet the production of vessels of various diameters.

Bubbles in the coating can be driven out and the coating can be densified, increasing the strength of the coating.

The large-volume resin tank is installed at the bottom of the trolley, and the resin can be used to complete the spraying of multiple tanks, and the automatic feeding device (optional) is provided to save manpower.

The S/F (F/F) double-wall spraying equipment produced by our company is a high-tech automatic spraying equipment widely used in underground storage tanks production for gas stations.

Company Contact:

• Posted By: Hengshui Fangchen FRP Equipment Technology Co., Ltd.

• Phone: 13303188070

• Address: No.6 east of Rubber Road, Northern Industry Area, Hengshui, Hebei, China., hengshui , hebei , China

• Email:

• Website: https://www.frp-machine.com

• Business Description: Hengshui Fangchen FRP Equipment Technology Co.,Ltd. is located in the beautiful National Wetland Nature Reserve - Hengshui Lake.

  The company has convenient transportation and advanced communication with Jingjiu Railway, Shide Railway, Daguang expressway and Shihuang expressway pass through.

  Our company is the member of China Composite Industry Association and specialized in producing FRP equipment high-tech enterprises.

  The main products are: micro-control FRP production line, process pipe production line; cable pipe wrapping equipment, vertical and horizontal storage tank winding equipment, septic tank winding equipment, heating pipe, insulation tube winding equipment; equipment FRP pultruded profiles and a variety of molds.

  The company has a large number of experienced mechanical engineers , glass craftworkers, electrical engineers, software engineers.

  The company establishes a complex team, which specializing in the development of FRP equipment, innovation and manufacturing.

  The company adheres to the road that the colleges combine with the enterprises , and we cooperate with Tsinghua University for a long-term.

  The company has developed the most advanced control system,which successfully produced a new generation micro-control wet winding FRP equipment.

  The technology has a leadership position in domestic counterparts.

  Our production has been sold throughout the country and achieved a good reputation.
