Vermiculite Flakes Supplier From China - China

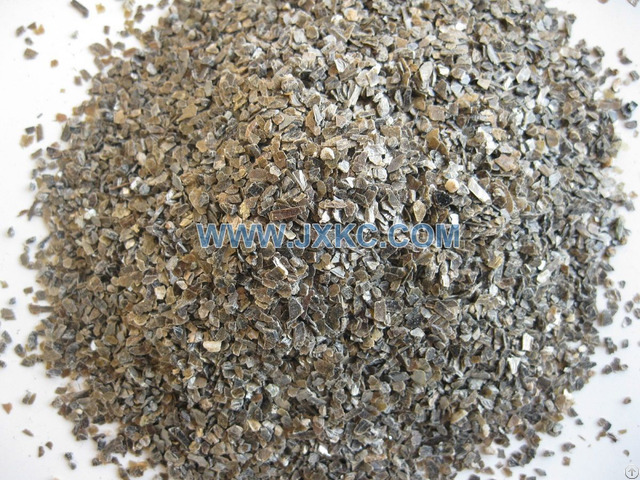

Vermiculite flakes

1 - Vermiculite is a silicate mineral, which is a mica sub-organism.

Its main chemical composition: 22MgO · 5Al2O3 · Fe2O3 · 22SiO2 · 40H2O

The theoretical molecular formula after roasting and expansion: ( OH) 2 (MgFe) 2 · (SiAlFe) 4O104H2O

2 - The original ore vermiculite is a layered structure with a small amount of water between layers.

After heating at 900-950 ℃, it can be dehydrated, bursted and expanded to 4-15 times the original volume, forming a porous light body material.

It has thermal insulation, high temperature resistance, insulation, antifreeze, earthquake resistance, acid and alkali corrosion resistance, sound insulation and other properties.

Physical and chemical properties of vermiculite

1 - The chemical composition of vermiculite

Composition SiO2 Al2O3 Fe2O3 FeO MgO TiO2 K2O H2O

Content ( % 37-45 8-18 3-10 1-3 10-22 1-1.5 2-8 10-21

2 - Physical and chemical properties

Specific gravity

g / cm3 Expanded vermiculite bulk weight kg / m3 PH value Hardness Refractory melting point Refractive index

2.2-2.6 80-200 6.28 1.3-1.6 1300-1370 1.52-1.65

Uses of vermiculite

1 - Used for thermal insulation

Expanded vermiculite has the characteristics of being porous, light weight and high melting point, and is most suitable for high temperature insulation materials ( below 1000 ℃) and fireproof insulation materials.

The fifteen-centimeter-thick cement vermiculite board was burned at 1000 ℃ for 4-5 hours, and the temperature on the back was only about 40 ℃.

The seven-centimeter thick vermiculite slab was burned at a high temperature of 3000 ℃ for five minutes by a flame-welded flame net.

The front side melted, and the back was still not warm by hand.

So it surpasses all insulation materials.

Such as asbestos and diatomite products.

Wancheng Mineral Vermiculite can be used as thermal insulation materials in high-temperature facilities, such as thermal insulation bricks, thermal insulation boards and thermal insulation caps in the smelting industry.

Any equipment that requires thermal insulation can be insulated with vermiculite powder, cement vermiculite products (vermiculite bricks, vermiculite plates, vermiculite pipes, etc.

) or asphalt vermiculite products.

Such as walls, roofs, cold storages, boilers, steam pipes, liquid pipes, water towers, converter furnaces, heat exchangers, dangerous goods storage, etc.

2 - Used for the sound insulation layer

Vermiculite expanded due to the formation of fine air gap layer, forming a porous insulation material when the frequency of 2000C / S, vermiculite thickness 5mm when the sound absorption rate of 63%, a thickness of vermiculite 6mm when the sound absorbing rate of 84%, vermiculite The sound absorption rate is 90% when the stone thickness is 8mm.

3 - For radiation protection facilities

Vermiculite can absorb radiation.

The vermiculite plate installed in the laboratory can replace the high-priced lead plate to absorb scattered radiation by 90%.

The thickness of vermiculite is 65mm, which is equivalent to a 1mm lead plate.

4 - For plant cultivation

Because vermiculite powder has good water absorption, air permeability, adsorption, looseness, non hardening and other properties, and it is sterile and non-toxic after high temperature roasting, which is conducive to the rooting and growth of plants.

It can be used for planting, seedling raising and cutting of precious flowers and trees, vegetables, fruit trees and grapes, as well as for making flower fertilizer and nutrient soil.

5 - Manufacturing for chemical coatings

Vermiculite having a corrosion resistance to acid, of 5% or less of sulfuric acid, hydrochloric acid, acetic acid, 5% aqueous ammonia, sodium carbonate, anti-corrosive effect.

Because of its light weight, looseness, smoothness, large diameter-to-thickness ratio, strong adhesion, and high temperature resistance, it can also be used as a filler in the manufacture of paints (fireproof paints, anti-irritant paints, waterproof paints) to prevent paint Settling and sending product performance.

6 - For friction materials

Expanded vermiculite has sheet-like and thermal insulation properties, can be used for friction materials and braking materials, and has excellent performance, non-toxic and harmless, and is a new environmentally friendly material for environmental pollution.

Company Contact:

• Posted By: Lingshou County Wancheng Mineral Co,Ltd

• Phone: +8631182610999

• Address: Nanan Village, Yan Chuan Township, Lingshou County, Shijiazhuang , Hebei , China

• Email:

• Website: https://www.jxkc.com

• Business Description: Lingshou County is located in the hilly area of the eastern foothills of Taihang in Hebei Province.

  It is rich in mineral resources, such as mica, quartz, vermiculite, feldspar, stone, etc., and has large storage and excellent texture.

  Our factory is located in the northwest of the county, at the foot of Taihang Mountain, close to Beijing-Guangzhou, Shitai, Shuohuang Railway and Beijing-Zhuhai Expressway.

  From the provincial capital Shijiazhuang, 60 km from the Beijing-Zhuhai Expressway intersection 30 kilometers and convenient transportation.

  Our factory is specialized in producing non-metallic minerals.

  Covering an area of more than 10,000 square meters, the main products are mica, quartz, vermiculite, colored sand, etc.

  Our factory has been devoted to the development and production of non-metallic minerals.

  The product quality has been gradually improved.

  The products are not only sold to the whole country, but also exported to the United States, Japan, South Korea, etc., and have won praise from the majority of users.

  Selecting materials, finishing, and managing are the business tenets of our factory; high grade, low price, and excellent service are our business strategy.

  We have always insisted that customers are big or small, and they are treated equally in terms of product quality and service quality.
