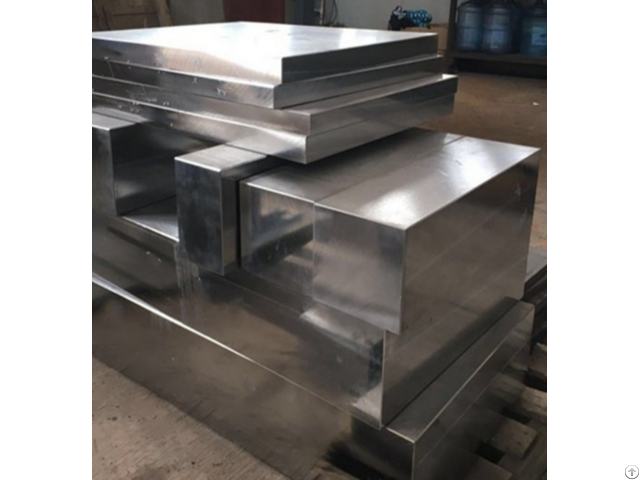

Custom Nf X200cr12 Steel Block Excellent Hardenability - China

The NF X200Cr12 steel block is classified as a high-carbon, high-chromium cold-work tool steel.

It possesses truly exceptional hardenability, ranking among the typical "deep-hardening, full-section hardening" grades within the category of ledeburitic steels.

**Why does X200Cr12 possess exceptional hardenability?**

**Core Reason: High-Chromium + High-Carbon Alloy Design**

- **Composition (NF Standard): **

- C: **1.9–2.2%**

- Cr: **11.0–13.0%**

- Si, Mn: Trace amounts

- **Role of Cr: ** **Significantly enhances hardenability** and markedly lowers the critical cooling rate; **oil quenching alone is sufficient to achieve a martensitic structure.

**

- **Microstructural Characteristics: ** As a hypereutectoid steel, it contains an **abundance of eutectic carbides.

** Following austenitization, the austenite exhibits **high alloy content and strong stability**, making it resistant to the premature precipitation of pearlite or bainite during the cooling process.

**Advantages of Exceptional Hardenability (for Steel Blocks)**

1 - **Through-Hardening of Large Blocks**

- For steel blocks with a thickness or diameter in the **200 mm range**, **oil quenching alone ensures uniform, high hardness throughout the entire cross-section.

**

2 - **Minimal Distortion and Dimensional Stability**

- The requirement for a slow cooling rate results in **low internal stress**, yielding a **heat treatment distortion rate of < 0.02%**.

3 - **No Need for Water Quenching; Low Risk of Cracking**

- Oil quenching provides sufficient hardenability, thereby **avoiding the risk of cracking associated with the rapid thermal shock of water quenching.

**

4 - **Suitable for Complex Mold Shapes**

- Ensures **uniform hardness—both internally and externally—** for molds featuring deep cavities, thick walls, or irregular cross-sections.

**Summary**

The NF X200Cr12 steel block belongs to the top tier of cold-work tool steels in terms of hardenability.

For blocks in the 200 mm size range, oil quenching achieves full-section high hardness with minimal distortion and no cracking, making it an ideal choice for large-scale, thick-section, and high-precision cold-work molds.
