Chromium Nickel Molybdenum Material 1 6580 Steel Plate Machining Process - China

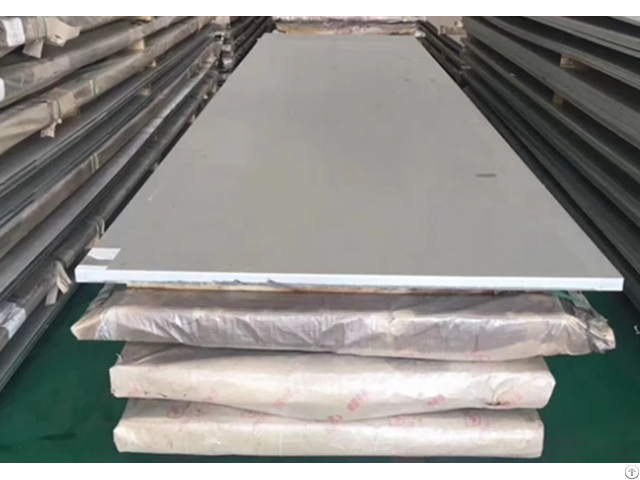

din 1.6580 steel plate is a chromium-nickel-molybdenu m alloy structural steel with good machining and heat treatment properties.

it is suitable for making high-load mechanical parts and molds.

the following is a detailed introduction to its machining process: cutting process

din 1.6580 steel plate has high requirements for tool materials and cutting parameters during machining.

the following are common cutting methods and recommendations: (1) turning

- **tool selection**:

- carbide tools (such as p-type carbide, coated tools can extend life).

- **cutting speed**:

- annealed state: 80-120 m/min

- quenched state: 50-80 m/min

- **feed speed**: 0.2-0.4 mm/rev

- **cutting depth**: 1-3 mm (roughing), 0.2-0.5 mm (finishing) (2) milling

- **tool selection**:

- tungsten steel milling cutter or coated tool (such as tin or tialn coating).

- **cutting speed**:

- annealed state: 100-150 m/min

- quenched state: 60-90 m/min

- **feed rate**: 0.1-0.3 mm/tooth

- **deep cutting**: 2-5 mm for roughing, 0.5-1 mm for finishing (3) drilling

- **tool selection**:

- carbide drill or high-speed steel drill (coated).

- **cutting speed**:

- annealed state: 15-25 m/min

- quenched state: 8-12 m/min

- **feed rate**:

- small hole diameter: 0.05-0.2 mm/rev

- large hole diameter: 0.2-0.5 mm/rev

- **coolant**: high-pressure coolant should be fully used to reduce temperature and friction.

the processing of din 1.6580 steel plates requires adjustment of process parameters according to hardness, processing status and final use to ensure processing efficiency and finished product quality.
