Calculating Diameter Automatic Tension Controller Light Weight For Printing Machine - China

Calculation Reel Diameter Auto Tension Controller For Packaging Machine B.

calculation type auto tension controller Calculating type automatic tension controller uses proximity switch, encoder testing machine speed and calculate the volume of material roll, again according to the roll diameter and setted tension to calculate controller the output current (voltage).

So as to achieve constant tension or taper tension control, it has no feedback tension and calculating model of tension controller is a kind of open loop control mode of the tension control.

After a roll winding/rewinding process is completed, whether the calculation type controller output roll diameter can be automatically return back to initial roll diameter, the calculation model controller is divided into Full automatic and semi-automatic two kinds.

Full Automatic type can be automatically return back to initial roll diameter after the completion of the rolling process, semi-automatic type needs manual operation to revert to the initial roll diameter.

Overview Being a member of the tension controller family produced by True Engin, ST-6400R is the one with function of caculating reel diameter.

It will caculate the reel diamater full-automatically or semi-automatically depending on the method of diameter measuring.

It has both graphicLCD and LED displays with a friendly user interface as well as innovative design.

The controller has output of 0~24v/4Afor direct driving of magnetic powder brake/clutch, and a auxiliary output of 0~10v/0~5v for frequency converter, torque motor/torque motor drive, servo motor/servo motor driver and other actuators.

It is an ideal solution for tension control in industries such as paper, packaging, printing, textile printing and dyeing.

Characters: 1 - Two starting modes of level and speed 2 - Function of piecewise taper tension control 3 - Bump-less switchover between auto/manual operation 4 - Function of auto-saving set tension parameters 5 - Parameters password protection and keyboard lock prevent erratic operations 6 - Custom function to the auxiliary outputs 7 - Lock of low exciting outputs applied one magnetic powder when output 8 - Military-grade switching power supply with over-current and over-heat protection guarantees reilable extended operations.

- - - - Parameters | Model | ST-6400R | Power Supply | AC 180~260V 50/60HZ | Input | Digital signal | 1 - MC0 - MC3 - MC4: Main axle A axle, B axle, proximity switch speed pulse signal ( proximity switch PNP Type, voltage supply DC24V), if select semi-automatic calcution, main axle MC0 no need proximity switch.

2 - MC1, MC5, MC6: points control signal (24V+high electric control signal) | Output | Main output | PA, PB: Two roads 24V/4A power output directly drive magnetic powder clutch or brake | Auxiliary output | SA, SB: Two roads DC0~10V/0~5V output can drive torque type inverterSynchronously, SA and PA main axle output changes synchronously, SB and PB main axle output changes synchronously.

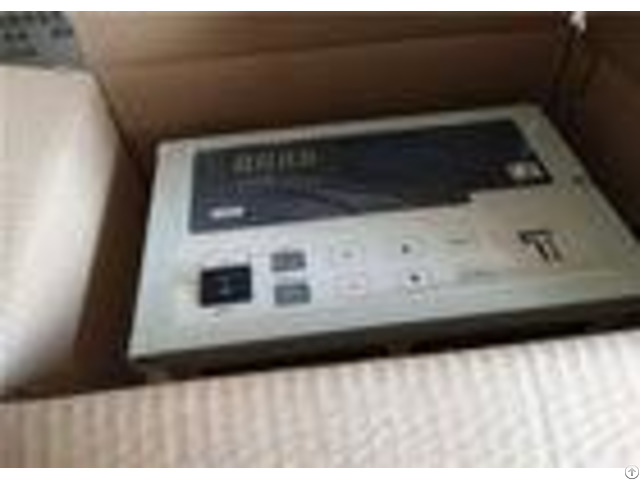

| Outline size | 246*154*114mm | - - - - Packing(Packaging & Delivery) Packing(Packaging & Delivery) Packaging Details: Paper CTN Delivery Detail: 1~3 working days after payment confirmation FAQ 1 - How to place an order? Please provide us more details of what you want, such as: application, measurement range, output, accuracy, thread type, electric connector and other related parameters.

2 - Does SNC offer any discount? Yes, if you buy large QTY, please contact us, we will give you a big discount.

3 - What terms of payment are available? We accept T/T, L/C, Trade assurance, Western Union, Paypal, etc.

4 - When will you arrange the production? We will arrange the production immediately after receiving your payment.

5 - How do you ensure good product quality? We have a complete quality control system, all of our products are fully checked by IQC, OQC departments before shipping to our clients 6 - Do you have warranty ? Yes, we provide 2 years warranty for most of our products.
