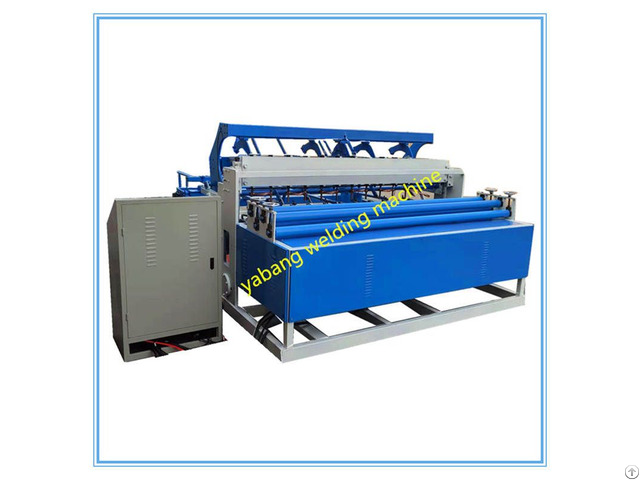

    Automatic Fence Mesh Welding Machine

    Products Photos Catalog Fence Mesh Welding Photos Catalog

    3-6mm Automatic Fence Mesh Welding Machine

    Product Description

    The 3-6mm Automatic Fence Mesh Welding Machine is a special equipment for welding metal mesh, which is widely used in construction, mining, animal husbandry, manufacturing and other fields.

    Main parameters:

    Type YB-1500B YB-2500B YB-3000B

    Numble of Eelectrodes 31 48 61

    Max.

    Mesh Width 1500mm 3000mm 3300mm

    Wire Diameter 3-6mm 3-6mm 3-6mm

    Mesh Length 3-12m 3-12m 3-12m

    Cross Wire Space 100-300mm 100-300mm 100-300mm

    Line Wire Space 100-300mm 100-300mm 100-300mm

    Electric Capacity 125KVA*4 125KVA*6 125KVA*10

    Welding Speed 40-65t/min 40-65t/min 40-65t/min

    Control System PLC control PLC control PLC control

    Function features and advantages:

    1 - This Wire Mesh Welding Machine cent-control and welding time are composed of PLC program system .

    The input front-panel has two forms, touch screen and keyboard that makes the machine more intelligent and reasonable and it could press at one time, separate welding.

    Surely, if the power supply is enough big, it can also adopt the welding at the same time.

    2 - Line wires adopt per-cut wires, line wires are put by hand based on the positioning device, then automatic tightening and send the down electrodes by sending line wires car installed with the step motor; When the mesh is being welded, line wires of the next mesh can be placed, which greatly shortens the working interval time of the machine.

    3 - Cross wires also adopt pre-cut wires, the cross wire hopper obtains wires by motor driver devices, electric magnetic increase feeding device auto-feeding the wefts into the preparation area of the device from the large storing hopper(storage up to 1000kg), it is installed in the removable pulling mesh rack, very convenient to adjust and maintain.


    Company Contact:


    • Phone: 15503232950

    • Address: 500M North Of Taicheng Village, East Huangcheng Town, Anping County, Hengshui City, Hebei Province, , hengshui , hebei , China

    • Email: Email


    Published date: January 28, 2026

    • Business Description: ANPING COUNTY YABANG WIRE MESH PRODUCTS CO., LTD is located in Anping County-the well-konw hometown of wire mesh, HeBei province, China.

      Our company is Founded in 2013 years.

      Professional Manufacturing wire mesh machine, wire mesh weaving machine and wire drawing machine, such as Reinforcing Mesh Welding Machine, Construction Mesh Welding Machine, 3D Fence Mesh Welding Machine, Breeding Mesh Welding Machine, Steel Wire Mesh Welding Machine, Brick Force Mesh Welding Machine, Nail Making Machine, Barbed Wire Machine, Razor Blade Wire Machine, Wire Drawing Machine, Cattle Fence Machine, Chain Link Mesh Fence Machine, Fiberglass Mesh Production Line and so on.

      The products produced by these machines are mainly used in the fences for highway, railway, airport, garden, farm, stadium, prison, construction, etc.

      Our Products:

      - Automatic Fence Mesh Welding Machine

      - Hydraulic Crimped Wire Mesh Machine Product Description

      - Pulley Wire Drawing Machine

      - Automatic Expanded Metal Machine

      - Barbed Wire Machines Cs A B C
