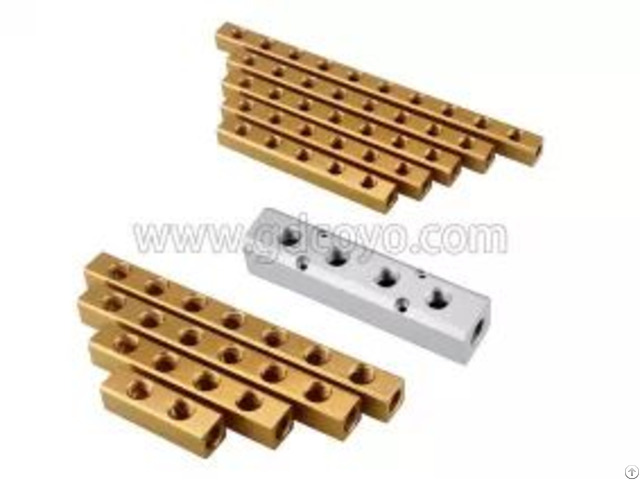

Aluminum Manifold Block - China

Standard or custom designs Attractive prices directly from the integrated block manufacturer Available materials: aluminum What you need to know before designing a manifold block Block thicknessThe block The initial thickness of the block is set at 5 times the maximum diameter of the valve port, and then gradually reduced according to specific requirements.

Drill oil holes Deep, slant holes The process hole should be as small as possible, considering the high flow chamber first and then the pilot chamber.

Wall thickness of each hole The safety wall thickness between oil chambers should not be less than 3~5mm, and should consider the deflection of the drill bit within the allowed range.

Oil chamber The flow rate of hydraulic oil in the oil chamber should not be higher than 12m/s, and the return chamber should be 20-40% larger than the inlet chamber.

Hydraulic manifold applications.

Various hydraulic systems and hydraulic equipment - Mobile applications - Mechanical and engineering applications - Factory automation and machining Hydraulic manifolds for many industrial sectors: .

Mining machinery - Forestry machinery - Construction machinery - Quarrying machinery - Mining machinery - Agricultural machinery - Waste and recycling equipment - Material handling industry and many more industries.

The more you can click here.

Company Contact:

• Posted By: Coyo (Foshan) Intelligent Technology Manufacturing Co., Ltd.

• Phone: 13415561126

• Address: 2nd Floor, Block 3, Kidford Science and Technology Innovation Park, No. 1 Huabao South Road, Chanche, foshan , guangdong , China

• Email:

• Website: https://www.gdcoyo.com

• Business Description: Guangdong Coyo Precision Machinery Manufacturing Co., Ltd. is a national new technology enterprise specializing in the production of industrial aluminum profiles and extension products, integrating research and development, design, extrusion and processing.

  The main products of the company are various grades of high precision industrial aluminum alloy profiles, pneumatic bus bus, bus communication valve island, optical and visual lens module, electric cylinder and linear module, medical instrument module and so on.

  Products are widely used in automotive, packaging, lithium, 3C, optics, medical and other intelligent equipment automation production line.

  Pneumatic solenoid valve bus-plate, bus valve island, bus communication valve island in the same industry in the domestic quality, type, market share have a considerable position.

  Our Products:

  - Precision Aluminum Products

  - Aluminum Manifolds

  - Aluminum Manifold Block

  - Aluminum Tube Profile Series

  - Aluminum Extrusion Accessories
