Milesen Stainless Steel Wire Mesh - China

price: 60.00 Dollar US$

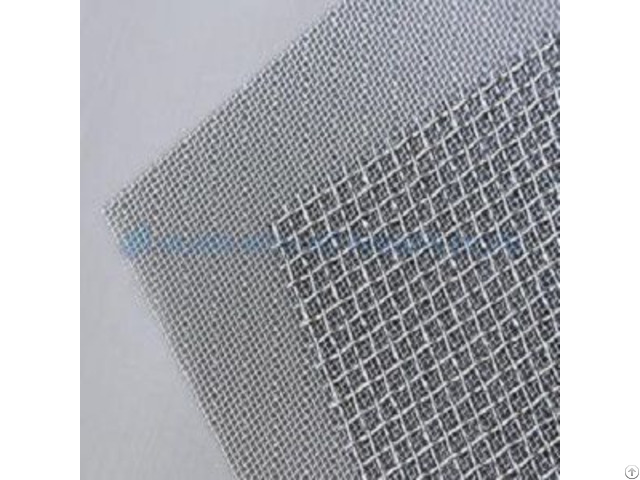

Stainless steel wire mesh is made of stainless steel wire through warp and weft woven.

Mainly used for the filtration and screening of gas, liquid and solid, the separation of media and so on.

With resistance for acid, alkali, high temperature and grind, it is widely used in industries like petroleum, chemical, automotive, new energy, food, pharmaceutical and others.

According to the opening type and woven type, the stainless steel woven mesh can be divided into square mesh(plain weave, twill weave), dutch weave mesh(plain dutch weave, twill dutch weave, double warp dutch weave, reverse plain dutch weave, reverse twill dutch weave, optimized design).

Square mesh: generally the wire diameter of warp and weft are the same, the mesh count of warp and weft are the same(rectangular mesh are not the same for warp and weft mesh count), weaving type can be divided into plain weave and twill weave.

Dutch weave mesh:

The stainless steel dutch weave mesh are also called dutch mesh, dutch cloth.

It is made of high quality stainless steel wire.

The main feature is that the wire diameter and density in the warp and weft direction are quite different, so the mesh thickness, filtration accuracy and the life time are obviously improved compared with the suqare mesh, specially on the filtration rate, it is not realized by the square mesh.

The reverse dutch weave mesh is a special filter mesh, with warp mesh count obviously bigger than weft mesh count, and the warp wire diameter smaller than weft wire diameter.

It is more difficult to weave than the plain dutch weave mesh, with high mesh strength, high filtration accuracy and high efficiency.

The ducth weave mesh is mainly used in industries like aerospace, petroleum, chemical industry and others.

It is suitable for filtration of plastic wire drawing machine, tape casting machine and film coating machine, such as plastic woven bags, plastic film, ink box, sewage treatment, etc.

Stainless Steel Wire Mesh Application:

Since our woven wire mesh is extremely versatile and easy to install, they can be used in a variety of applications.

Examples of common applications include:

1 - Used in Acid, Alkali environment screening mesh and filtration filter

2 - For a slurry net Petroleum industry

3 - Chemical fiber industry

4 - Filtering liquid and gas

5 - Used for Mechanical accessory security etc.

Packing: wrapped with water-proof paper, then in wooden cases or pallet

Stainless Steel Wire Mesh Note:

1 - Standard roll length 30m, Width 1m, 1.2m, 1.5m, 2.0m etc.

2 - Packing: water-proof paper, woven bag and also can be made as per client's requirement.

3 - Mesh counts: Specification of Square Mesh.

Company Contact:

  • Phone: 15512988999


  • Email: Email

Published date: August 30, 2021

  • Business Description: Milesen Metal Net Products Co.,Ltd established in 2006,after 13 years working experience for oversea market ,Milesen has become specialized wire mesh manufacture and mesh solution provider .

    98% of products has been exported to oversea markets mainly in Asian Pacific Markets and some European countries.

    Woven mesh is our main products, including stainless steel woven mesh, Epoxy Coated mesh, galvanized woven mesh ,Brass Mesh and Mesh Further Fabricated Items: Slitting mesh & mesh discs;

    Our Square Mesh: Mesh 1-Mesh 635 with plain weave and twill weave, Dutch weave includes Plain Dutch Weave ;Twill Dutch Weave and Reverse Dutch Twill Weave ;We adopted news design looms with Numerical Control for more accurate micron performance;

    We have 50 sets weaving looms , annual output capacity is 1million square meters.

    3Meter- Width machine is dedicated to weave Dutch Weave Mesh upto 2800mesh with light table on manufacturing and inspection process.

    1complete set flattening machinery makes mesh surface more flat and firm;4 set Self Designed slitting and cutting machine assure 0.5mm tolerance and less wire peal -off;All of our further processing,inspection and packing process will be monitored by video,we show it to customer to better understand how we proceed.

    We obtained Certificate of GB/T19001-2016 /ISO9001: 2015;ISO Registered #: 06718Q20463R0M and some customized certificates like stainless steel wire mesh salt spray test and Rohs Directive Test Reports,White House Micron Test Report,MSDS Certificate; etc.

    Milesen aimed and conducted timely response;8 hours is our deadline for normal feedback;We have our sales office in South Korea, will set up more service offices in ASEAN ,and planned to offer consignment service ,these activities will greatly helps to service local customers with fast delivery and local services.

    We look forward your anticipation and cooperation.
