Wedge Wire Screen Cylinders Stainless Steel Seawater Filter Element - China

price: check with company for price

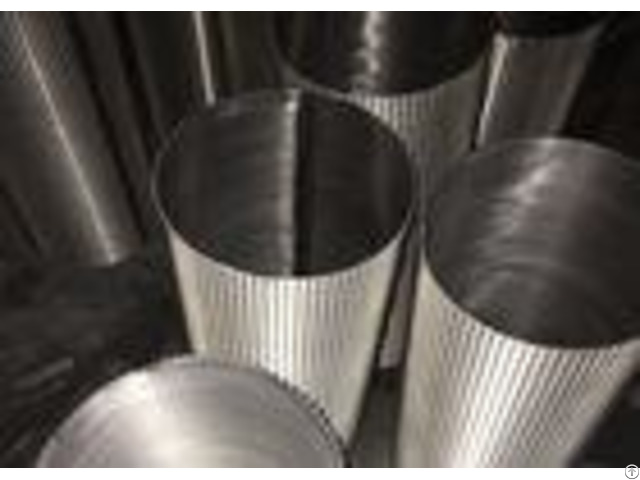

Wedge Wire Screen Cylinders Stainless Steel Seawater Filter Element

Products Photos Catalog Wedge Wire Screen Photos Catalog

Wedge Wire Screen Cylinders Stainless Steel Seawater Filter Element Stainless Steel Seawater Filter Element 1 Filtering part: Wedge wire screen, vee slot screen, wedge wire mesh, pressure curved sieve

2 material of stainless steel 316L.

3 - high quality, anti-corrosiveness, high strength, min slot is 15 micron meter

4 - application in water treatment, oilfield, mining, food industry, chemical industry, papermaking industry, decoration.

5 - the quality is now almost the best in China, most companies just use our products as the imported goods.

6 - main customers including companies of the world's.

Specifications:

Screening efficiency and solids capacity are directly related to the length (arc length).

Longer arc lengths should be considered for feed containing a high percentage of solids.

Specifications;

Gap: 0.015-8.10mm

Nominal diameter: Can be customized according to customers requirements

Tolerance clearance: 0.1mm curing 120

Material: 304, 304L, 316, 316L, 904L, 2205, 2507, hastelloy-c276, etc.

Mesh selection: wedge wire mesh

Treatment: Pickling Advantages:

# flatnesstowithintighttole rances

# noweakeningofthewelds, becauseofflattening(andno stresscorrosionproblemsas aresult)

# accuratedistancebetweensu pportprofiles

# possibilityofdifferentsup portwiresinonescreen

# possibilityofvariablespac ingbetweensupportwiresino nescreen Date Sheet for more available sizes: - - - -

No.

| (mm)TYPE | OD

(mm) | ID

(mm) | Support wire Number | Filter direction | 1 | SRD 40 | 40 | 31 | 8/10 | FOTI/FITO | 2 | SRD 45 | 45 | 36 | 10/12 | FOTI/FITO | 3 | SRD 48 | 48 | 38 | 12 | FOTI/FITO | 4 | SRD 60 | 60 | 51 | 12 | FOTI/FITO | 5 | SRD 70 | 70 | 61 | 12/18 | FOTI/FITO | 6 | SRD 85 | 85 | 76 | 18 | FOTI/FITO | 7 | SRD 110 | 110 | 101 | 24 | FOTI/FITO | 8 | SRD120 | 120 | 111 | 24 | FOTI/FITO | - - - -


Company Contact:


  • Phone: 86-571-89165607

  • Address: No. 704 ,2nd Building, Meilai International, Linping,311100 Hangzhou ,China, Hangzhou , Zhejiang , China

  • Email: Email


Published date: April 3, 2018

  • Business Description: Hangzhou Schroeder technology Co., Ltd provides value added high precision Wedge wire screen products and services to global clients in various industries.

    We learned advanced production experiences , our company has advanced production technology and innovative design .
