Slotted Cylindrical Wedge Wire Screen High Filtering For Hydro Treatment - China

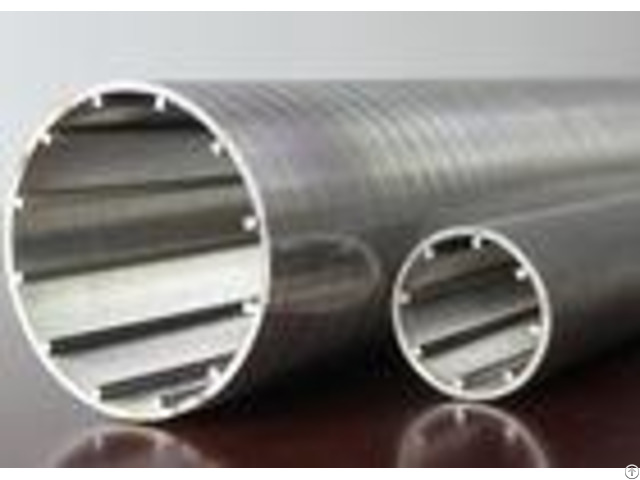

Slotted Cylindrical Wedge Wire Screen High Filtering For Hydro Treatment Item Code: WWS Brief introduction Wedge Wire Screen are made of Stainless steel Wedge wire.

It loops on the support rods and form the filtration slot between the looped wires.

The shape of the wire is Wedge.

So the slot is special structure.

The surface is non-clogging .

Thanks for the advanced Production technology .

SLOT-CHINA 's wedge wire screen is not only high precision, but also perfect roundness with smooth surface.

We are expert at small Diameter one.

Different Sizes Of Wedge Wire Screen Diameter from 25mm to 120mm, Slot Size from 20 Microns.

And Moreslot sizes can be produced as clients requests.

1 - Material We use normally 304 and 316L S.

S Material which were all imported from world famous supplier.

Complete specifications for material to adapt to customer demand.

2 - Construction Our wedge wire screen were welded by profile wire and support wire.

We can make the screens in different shape according to the different usage.

Like tube and plate etc.

3 - Type of profile wire and Support rod - - - - | - - - - Profile Wire | W | H | | 10SR | 0.75 | 1.425 | | 12SR | 1 | 2 | | 18SR | 1.52 | 2.54 | | - - - - | - - - - - - - - | - - - - Support Rod | W | H | | Q22 | 2 | 2.3 | | Q25 | 2 | 3 | | - - - - | - - - - Technical data for available OD and filtering rate.

- - - - No.

| (mm)TYPE | OD (mm) | ID (mm) | Support wire Number | Filter direction | 1 | SRD25.4 | 25.4 | 18.6 | 12 | FOTI | 2 | SRD 33 | 33 | 24 | 8 | FOTI | 3 | SRD 37 | 37 | 28 | 8 | FOTI | 4 | SRD 40 | 40 | 31 | 8/10 | FOTI/FITO | 5 | SRD 45 | 45 | 36 | 10/12 | FOTI/FITO | 6 | SRD 48 | 48 | 38 | 12 | FOTI/FITO | 7 | SRD 60 | 60 | 51 | 12 | FOTI/FITO | 8 | SRD 70 | 70 | 61 | 12/18 | FOTI/FITO | 9 | SRD 85 | 85 | 76 | 18 | FOTI/FITO | 10 | SRD 110 | 110 | 101 | 24 | FOTI/FITO | 11 | SRD120 | 120 | 111 | 24 | FOTI/FITO | - - - -
