Slot Size Stainless Steel Slotted Wedge Wire Screen Cylindrical For Liquid Filtering - China
price: check with company for price

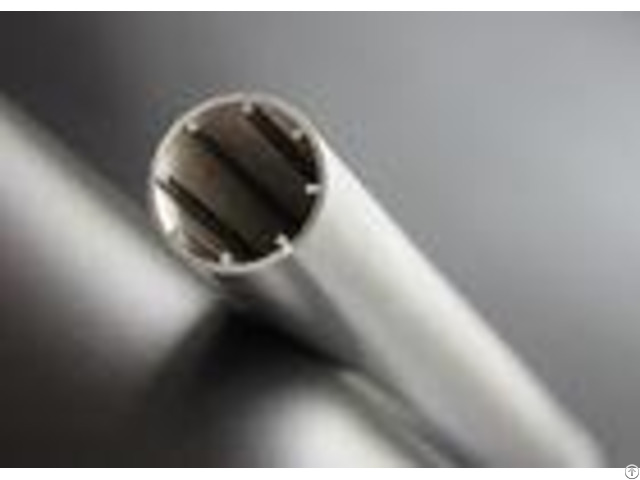

Slot Size Stainless Steel Slotted Wedge Wire Screen Cylindrical For Liquid Filtering Brief introduction OD37FOTI0.04MM High precision wedge wire screenis a high precision screening filter for the structural elements of the metal mesh.
The filtrition rate is 40microns.
More widely used in industry screening, filtration, dehydration, and other operating Desliming.
It has high strength, stiffness and load-bearing capacity, can make various shapes of the rigid screening filter.
Wedge wire screen isalso called slot tube, Johnson screen, Looped screen.
- - - - Usage: | Liquid Filter | Wire shape | WEDGE | Type | Filter Elements | Support rod | Q25 2*3mm | Material: | 304 Stainless steel | Rof shape | square | Filter Rating: | 20 micron | Filtering direction | FOTI | Unit Length | with in 2500mm | whatsapp: | 008613758144618 | OD | 25mm | Profile wire | 10SR 0.75*1.425mm | - - - - Specification of 20m Filtering Slot Size Slotted Wedge Wire Screen - - - - Specifications: | 20m Filtering Slot Size Slotted Wedge Wire Screen | Quality control system | Factory own control | Function: | liquid filtering / liquid solid separation | Efficiency: | High | Open area: | large open area | Cleaning way | Back flush, easy to clean | Application: | oil well, gas well, water well, food processing, etc.
| Materail: | wedge/ vee shape stainless steel wire(304/ 316L) | Profile wire: | wedge shape, Width(mm): 0.751.001.50Height(mm): 1.502.003.00 - | Support rods: | square shape, Width(mm): 2.00; Height(mm): 2.303.00; | Diameter(mm): | 25.40mm ( Less than 220mm) | Length(mm): | 1000mm, (Less than 1500mm long) | End connection: | Commen fittings, NPT, BSP end fittings, calculate price seperately | Packaging | 1 step: PVC net 2 step: Wooden case | Delivery | 15-30 Days after deposit | Priceand payment terms | payment: | L/C, T/T, Western Union | Port: | SHANGHAI, NINGBO, HANGZHOU | - - - - # Picture 1: wedge wire screenprofile, wedge shape.
# Picture 2: wedge wire screensupport rod.
# Picture 3: wedge wire screenstrong welding.
# Picture 4: wedge wire screeneverage slot sizes.
# Picture 5: wedge wire screenperfect roundness.
Company Contact:
- Posted By: Hangzhou Schroeder Technology Co.limited
- Phone: 86-571-89165607
- Address: No. 704 ,2nd Building, Meilai International, Linping,311100 Hangzhou ,China, Hangzhou , Zhejiang , China
- Email:
- Website: https://www.wedge-wirescreen.com
Published date: April 3, 2018
- Business Description: Hangzhou Schroeder technology Co., Ltd provides value added high precision Wedge wire screen products and services to global clients in various industries.
We learned advanced production experiences , our company has advanced production technology and innovative design .
