High Flow Custom Stainless Steel Well Screen 2500 Mm 750 Micron 316 L - China

price: check with company for price

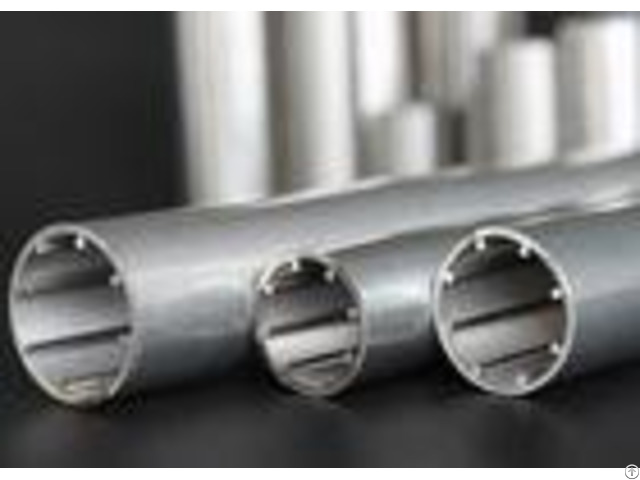

High Flow Custom Stainless Steel Well Screen 2500 Mm 750 Micron 316 L

Products Photos Catalog Flow Stainless Steel Photos Catalog

High - Flow Custom Stainless Steel Well Screen 2500 mm 750 Micron 316 L Brief introduction We are dedicatedly engaged in offering a commendable range ofWedge Wire Screen.

The offered screen is broadly used in steel industry for several purposes.

Using premium quality raw material with the aid of the latest technology, the provided screen is manufactured under the guidance of skilled professionals at our production unit.

Owing to its remarkable features like durability and easy installation, this screen is highly acclaimed by our clients in the market.

The advantages for such construction.

We use wedge-shaped profile wire in order to make the slot v-shaped.

It can stop the impurities very well.

The wedge wire was welded on the support wire well-proportioned and have perfect roundness.

Ensure the screen have bigger filter area and non obstructive, avoid the high concentration of impurities.

After work for a period of time, the filter can be back flush.

It can use for many times.

1 - Material: SS304 We use normally 304 and 316L S.

S Material which were all imported from world famous supplier.

Complete specifications for material to adapt to customer demand.

2 - Construction Our wedge wire screen were welded by profile wire and support wire.

We can make the screens in different shape according to the different usage.

Like tube and plate etc.

3 - Type of profile wire and Support rod - - - - | - - - - Profile Wire | W | H | | 10SR | 0.75 | 1.425 | | 12SR | 1 | 2 | | 18SR | 1.52 | 2.54 | | - - - - | - - - - - - - - | - - - - Support Rod | W | H | | Q22 | 2 | 2.3 | | Q25 | 2 | 3 | | - - - - | - - - - 4 - Filtering direction from outside to inside (FOTI), Filtering slot is 0.04mm, 40 micron.

Technical data for more available OD and filtering rate.

- - - - No.

| (mm)TYPE | OD (mm) | ID (mm) | Support wire Number | Filter direction | 1 | SRD25.4 | 25.4 | 18.6 | 12 | FOTI | 2 | SRD 33 | 33 | 24 | 8 | FOTI | 3 | SRD 37 | 37 | 28 | 8 | FOTI | 4 | SRD 40 | 40 | 31 | 8/10 | FOTI/FITO | 5 | SRD 45 | 45 | 36 | 10/12 | FOTI/FITO | 6 | SRD 48 | 48 | 38 | 12 | FOTI/FITO | 7 | SRD 60 | 60 | 51 | 12 | FOTI/FITO | 8 | SRD 70 | 70 | 61 | 12/18 | FOTI/FITO | 9 | SRD 85 | 85 | 76 | 18 | FOTI/FITO | 10 | SRD 110 | 110 | 101 | 24 | FOTI/FITO | 11 | SRD120 | 120 | 111 | 24 | FOTI/FITO | - - - - Remarks: 1 - Make high precision wedge wire screenwith different material according to user requirements.

2 - high precision wedge wire screen' should be bigger than 0.020mm slot and less that 2500mm long.


Company Contact:


  • Phone: 86-571-89165607

  • Address: No. 704 ,2nd Building, Meilai International, Linping,311100 Hangzhou ,China, Hangzhou , Zhejiang , China

  • Email: Email


Published date: April 3, 2018

  • Business Description: Hangzhou Schroeder technology Co., Ltd provides value added high precision Wedge wire screen products and services to global clients in various industries.

    We learned advanced production experiences , our company has advanced production technology and innovative design .
