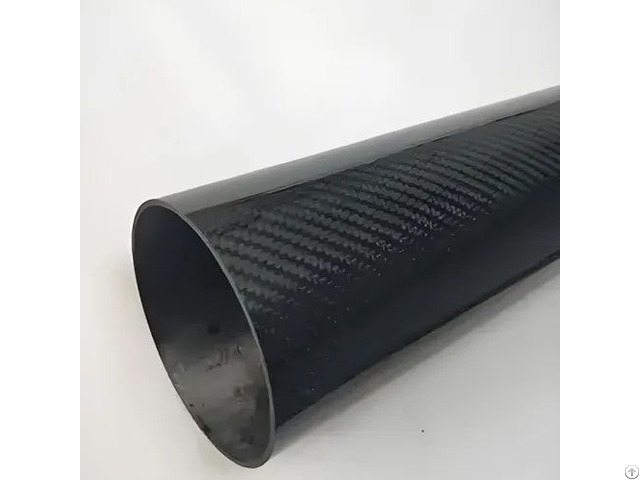

3k T300 Carbon Fiber Tube - China

● Material: 3K braided T300 carbon fiber + epoxy resin (Other resins can be customized, such as high-temperature resistant and flame-retardant types).

● Appearance: Classic black twill weave (3K means each bundle contains 3000 carbon filaments, and the surface can be matte or glossy).

● Process: Rolling/winding forming, smooth inner wall and clear outer wall texture.

Core advantage

● Ultra LIGHT and high strength: weighs only 1/4 of steel, and is much stronger than aluminum.

● Resistant to corrosion: resistant to acids and alkalis, moisture-proof, suitable for harsh environments such as Marine and chemical.

● Low thermal deformation: Extremely low coefficient of thermal expansion, ideal material for precision instruments.

● Strong customizability: supports different diameters, wall thicknesses, resins and surface treatments.

Technical Parameters

Items Values

Fiber Type T300 (High-strength standard modulus carbon fiber)

Weave Method 3K twill (customizable plain weave or UD unidirectional)

Resin Epoxy resin (customizable)

Density 1.50-1.60 g/cm³

Tensile Strength ≥3, 500 MPa

Tensile Modulous 230-250 GPa

Thickness 0.5mm-10mm (customizable)

OD 5mm to 150mm (customizable)

Standard Length 1m/2m (Customizable)

Operating temperature "-50℃ ~ +150℃" (High-temperature resin can reach 200℃)

Typical Applications

● Aerospace: satellite mounts, model aircraft skeletons, UAV arms.

● Industrial machinery: Connecting rods of mechanical arms, shafts of automated equipment.

● Sports equipment: bicycle frame, fishing rod, golf club.

● Automobile modification: lightweight drive shafts, roll cage support tubes.

● Electronic equipment: antenna poles, optical instrument brackets.

Processing and Installation

● Processability

Supports cutting, drilling and tapping (low-speed processing is recommended to avoid delamination).

The end can be pre-embedded with metal inserts (to enhance the connection strength).

● Connection method

Adhesive bonding (epoxy structural adhesive).

Metal flange butt joint (customized interface required).
