Tungsten Moly Hot Edge Behavior Explained For M2 High Red Hardness Hss Buyers - China

M2 high red hardness HSS earns its place on the specification sheet of every serious cutting tool program because of one property that ordinary alloy steels cannot offer: the cutting edge keeps working hardness even when friction heat pushes it close to 600°C.

This article explains the metallurgical mechanism behind that behavior and how buyers can verify it before committing to a volume order.

Where red hardness comes from in M2 high red hardness HSS:

1 - Secondary hardening.

During tempering at 540-580°C, fine M2C and MC carbides precipitate from martensite, raising hardness above the as-quenched level instead of lowering it.

2 - Retained alloy in solid solution.

Tungsten and molybdenum locked in the matrix resist carbide coarsening, so the tempered structure stays fine even after hours at working temperature.

3 - VANADIUM MC carbides.

Hard MC particles derived from 1.75-2.2 percent vanadium resist abrasion and keep micro-edges sharp during high speed cutting.

4 - Preserved martensite.

Three tempering cycles transform retained austenite progressively, stabilizing the hardness curve.

What to verify on certificates when sourcing M2 high red hardness HSS:

- Chemistry per ASTM A600 / EN ISO 4957 with heat number traceability

- Annealed hardness max 255 HB with spheroidized microstructure photomicrograph

- Tempering hardness curve data on request showing peak hardness around 560°C

- UT test per SEP 1921 for bar diameters above 20mm Practical red hardness test methods used by tool makers:

- Hot hardness comparison: measure HRC at room temperature after holding samples at 500, 550 and 600°C for four hours; quality M2 high red hardness HSS recovers to 62+ HRC after cooling

- Tool life cutting trials at elevated speed against a reference grade

- Short time dilatometry confirming secondary hardness peak Applications that depend on red hardness:

- Twist drills running 40-80 m/min in structural steel without coolant

- Gear hobs and broaches cutting continuously for long production runs

- Saw blades cutting abrasive stainless plate

- Warm forming punches touching 450-550°C workpiece surfaces Accounting figures for planning: density 8.16 g/cm3, quenched grain size per ASTM 112 around 10 or finer, linear growth after heat treatment about 0.15-0.20 percent.

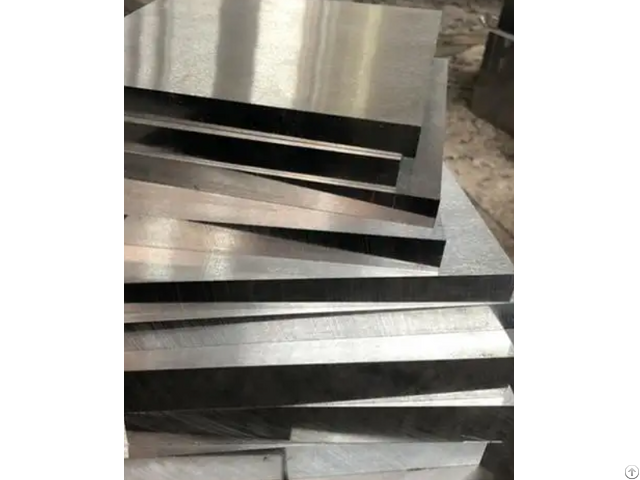

Our bars ship spheroidized annealed with EN 10204 3.1 certificates and supplementary red hardness test reports for partners who need documented performance data for export tool programs.
