Titanium Carbide Hard Alloy Drive Wheel Specialized - China

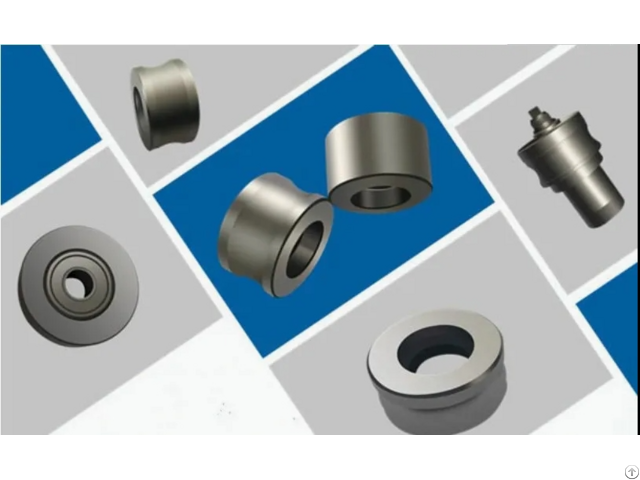

The titanium carbide (TiC) guide wheel is fabricated via high-temperature powder metallurgy sintering using titanium carbide powder with a purity of ≥99.6 wt%.

It exhibits a Vickers hardness equivalent to HRA >92, a theoretical density of 6.68 g/cm³, and exceptional resistance to wear, high-temperature oxidation (continuous service temperature up to 1600 °C), and chemical corrosion.

The working surface undergoes precision grinding and polishing, achieving a surface roughness of Ra ≤ 0.4 μm; dimensional tolerances are maintained within ±0.01 mm for diameter, width, and bore, ensuring coaxiality and roundness compliant with ISO 286–1 (IT5–IT6 grade).

This results in low-friction operation (coefficient of friction ≤ 0.15), minimal transmission noise, and negligible surface damage to conveyed materials.

Relative to conventional stainless steel or aluminum alloy guide wheels, its wear resistance is enhanced by a factor of 5–8, thereby extending service life significantly and reducing maintenance intervals and total cost of ownership.

The guide wheel is vacuum-sealed for transit integrity and is fully customizable—diameter (10–500 mm), width, bore geometry, and bearing interface can be tailored to equipment specifications.

It is widely deployed in demanding industrial applications, including metallurgical continuous casting lines, mining conveyor systems, semiconductor wafer handling, aerospace component assembly, and high-temperature furnace transport mechanisms.

Company Contact:

• Posted By: Zhuzhou Hastion High-Tech Materials Co.,Ltd.

• Phone: +86-731-22891182

• Address: Small And Medium-Sized Enterprises Pioneer Park, Yanling County, Zhuzhou City,Hunan Province, China, Zhuzhou , Hunan , China

• Email:

• Website: https://www.hastion.com/

• Business Description: Our factory is in yanling, Zhuzhou of Carbide centralized place,which occupies an area of 60,000 square meters and a planned factory area of 50,000 square meters.

  Now HASTION have 2 different

  productions lines, one is the raw material metal compound and elemental powder(TiC/Cr3C2/VC/NbC/Z rC/HfC/(W,Ti)C/(Ta,Nb)C and so on), the other one is

  the titanium carbide cermet rod/insert/plate/customiz ed shape/guide roller and so on(belong to the steel-bonded cemented carbide), until now our products have been sold to many countries, like the Turkey, Belgium, Australia, Japan, Korea, Vietnam, India, Pakistan, Thailand and etc.
