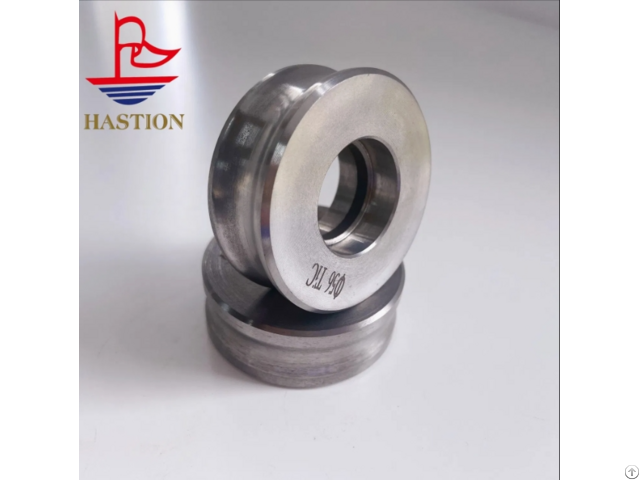

Mirror Finish Titanium Carbide Guide Wheels - China

The installation holes of the guide wheel have high precision, and the fit clearance with the shaft can be controlled within 0.005-0.01mm, ensuring no shaking during rotation and improving the guiding accuracy.

Its maintenance cost is low, and it does not require frequent lubrication.

Only regular cleaning of surface impurities is needed, making it suitable for continuous operation of automated production lines.

In the production of metal wire mesh, guide wheels can ensure the uniformity of the mesh holes of the wire mesh, keeping the error within 5% and meeting the strict requirements of filter materials.

Hard alloy titanium carbide guide wheels are key guiding components in the production of wire and tube materials.

They are made by powder metallurgy sintering of high-purity titanium carbide and cobalt binder phases, with a surface hardness as high as HRC88 and wear resistance more than 50 times that of steel guide wheels.

The roundness error is controlled within 0.002mm to ensure smooth operation of the wire during high-speed drawing (up to 100m/s), avoiding jitter or offset.

In the production of stainless steel wire, the use of this guide wheel can reduce the surface roughness of the steel wire from Ra1.6μm to Ra0.4μm, significantly improving product quality.
