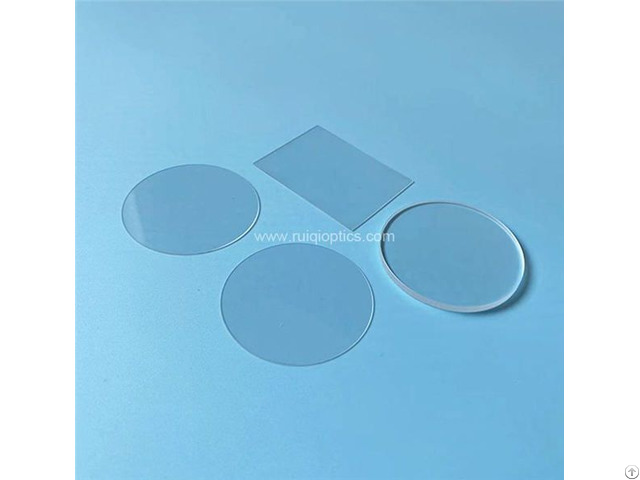

Mgf2 Single Crystal Window - China
price: contact company for price
MgF2 optical window have a good light transmittance and low refractive index from 0.12um to 7.5um, good performance on UV, VIS and IR area, widely used on optics, lasers, infrared field.
Substrate MgF2 Single Crystal
Crystal Orientation No orientation, or <100>, <110>, <111> as choice
Size 3-200mm Custom Made
Thickness 0.5-60mm
Dimension Tolerance +0/-0.1mm
chipping <0.1mm
Bevel <0.2*45degree
Surface Accuracy lambda/4
Surface Quality 60/40
CA >90%
Parallelism <3arc min
Company Contact:
- Posted By: CCRQ Optics Co., Ltd
- Phone: +86 151 0446 6986
- Address: Yatai Shanyuhu, Room 506, H17, Jingyue District, Changchun , Jilin , China
- Email:
- Website: https://www.ruiqioptics.com/
Published date: October 30, 2024
- Business Description: CCRQ Optics Co.
Ltd. is located in Changchun City, Jilin Province, the optical base of China.
The company has specialized production equipment and experienced technical team.
Company is mainly engaged in optical components, such as Optical lens, spherical lens and Aspheric lens, optical windows, optical prisms, optical mirrors, Coating including Anti-reflective coating, reflective coating,Metal Coating, Beamsplitter coating,waterproof coating etc.
Wavelength range from Ultra-Violet, Visible light, Near infrared and Infrared.
The optical lens is mainly applied in mechanical instrumentation, optical instrument, medical hairdressing apparatus, teaching and scientific research instrument, semiconductor, laser technology, military and aerospace high-tech areas, etc; products are mainly exported to Southeast Asia, North America, Europe, Russia, Japan, Korea and other developed countries and regions.
