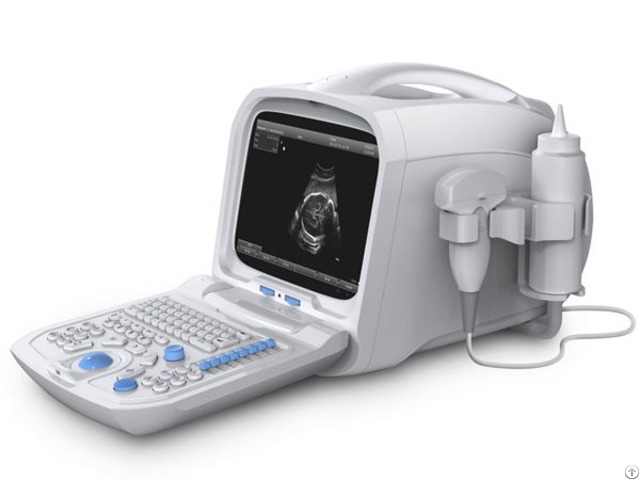

Canyearn A45 Basic Portable Ultrasonic Diagnostic System - China

General Specification 1 - Main Features

Operationg Syetem No

Monitor 10.4 inch CRT monitor

Scanning Mode B, 2B, 4B, B/M

Keyboard Back-lit Silicone Keyboard (option)

Cine Loop Up to 256 frames

Gain 0-100dB

TGC 8 segment

Scanning Depth Up to 240mm

Dynamic Range 0-100dB

Pseudo-color 8 colors

Body Marking 30

Focus 4

Magnification 1.0, 1.2, 1.5, 2.0

Probe Connector 2

Language Chinese/English

Matching Printer Laser/Vedio/Inkjet/Therma l printer

Peripheral Port USB, VGA, DICOM3.0, RS232, VIDEO OUT

Measurement & Calculation Distance, C/A, HR and PW(obstetrics: BPD, CRL, OFD, TTD, FL, HC, AC) measurement Image Processing Dynamic Range, DSC, The line average turnover, Contrast, Edge Enhancement, Gray-scale Transformation&Adjust ment, Brightness, Gamma Correction

2 - Applications

Abdominal

Gynecology Obstetric(BPD, CRL, OFD, TTD, FL, HC, AC)

Cardiology

Urology 3 - Standard Configuration

Main system unit, 3.5MHz Convex probe, User manual and disc 4 - Optional Items

Biopsy Bracket, Ultrasonic Stands, USB Flash Disk 5 - Probes Selection

3.5 MHz Convex Probe (3.5-14MHz variable frequency ) 7.5 MHz Linear Probe (3.5-14MHz variable frequency ) 7.5 MHz Transvaginal Probe (3-10MHz variable frequency)

5.0 MHz Micro-Convex Probe (2-6MHz variable frequency) 7.5 MHz Rectal Probe(80 elements) 6 - Advanced Technologies

User-friendly Interface

Dual Connector Support Various Probes

Back-lit Keyboard Packaging & Delivery

Packaging Details: Box Package

Net Weight: 12kg

Gross Weight: 18kg

Package Size: 500*400*450mm

Delivery Time: 5-10 working days Warranty

Two years for main unit (One year warranty for probes) Please let us know your specific request.

We would like to recommend you the most suitable model based on your information.
