Thermoforming Packaging Machine - China

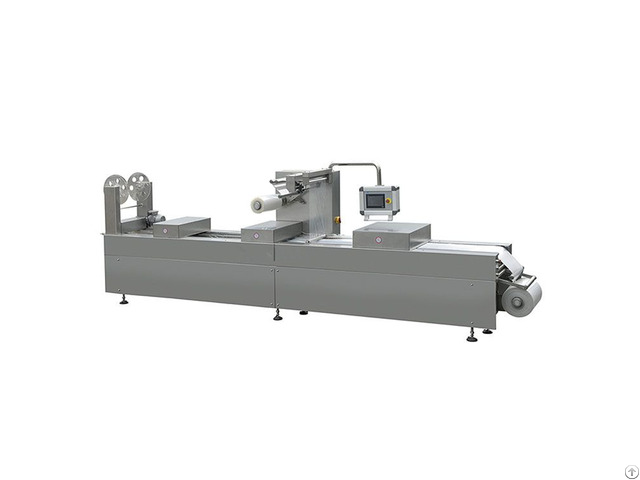

Thermoforming Packaging Machine

Automatic Vacuum Packaging Machine

MODEL NO:

RC420/520

SPECIFICATION:

Applications

Applicable for vacuum, gas and skin-packing with various food, meat, sea food, fruit, vegetable, medical and hardware items.

Main Features and Characteristics

1 - OMRON PLC, touch screen & servo motor are used with reliable performance and ease of operation;

2 - Modular moulds are applied that can be replaced easily and the machine can be used for multiple purposes;

3 - Photoelectric follow-up: color cover film or optical film can be used for packaging, which can reduce the cost and upgrade the products;

4 - With modular moulds, They can be replaced easily and can be used on several machines.

The moulds have a cooling system;

5 - Fitted with a scrap recycling system, good environment and health can be maintained;

6 - The mould adopts aluminum alloy materials, have good corrosion resistance and wearing resistance after Hardening treatment;

7 - With special holding chains, the packaging machine is applicable for extending and moulding of flexible film or rigid film of different thickness for special purpose packaging;

8 - With advanced horizontal and longitudinal cutting systems, the machine’s replacement operation is more convenient;

9 - There is a scrap and waste recycling system to help maintain environmental cleanness;

10 - Main part of the machine is made of stainless steel, that greatly improves the corrosion resistance of the equipment;

11 - The German Busch Pump is used on the machine, with high degree, steady quality and good durability.

Machine Item

Model ZG-420 ZG—520

Width of top film (mm) 396mm 496mm

Width of bottom film (mm) 422mm 522mm

Package style Vacuum & Gas Flush 200-500mm

Film Flexible/ Semi-rigid/ Rigid Flexible/ Semi-rigid/ Rigid

speed 4-6T/M 4-6T/M

Water cooling ≥0.15Mpa ≥0.15Mpa

Total power 10kw 10kw

Electric power 380V/50HZ 380V/50HZ

Compress air requirement(to be supplied by user) ≥0.6Mpa ≥0.6Mpa

Machine weight(kg) 2200kg 2450kg

Machine overall dimensions 6000×1050×2050mm 6500×1150×2050mm

Main Machine Structure

Main Machine Body Stainless steel

Mold Material Teflon coated aluminum

Mold Size According to Customer’s request

Chain REGINA

Top Film Roller Air-shaft(Mechanical brake)

Code Printer Auto type printer

Cutting System Horizontal punching cutting

Slitting Device Vertical wheel cutting

Discharge Conveyor 1000mm length

Scrap Recycling System Rolling rewinding type
