Modified Atmosphere Packaging Map Packing Machine - China

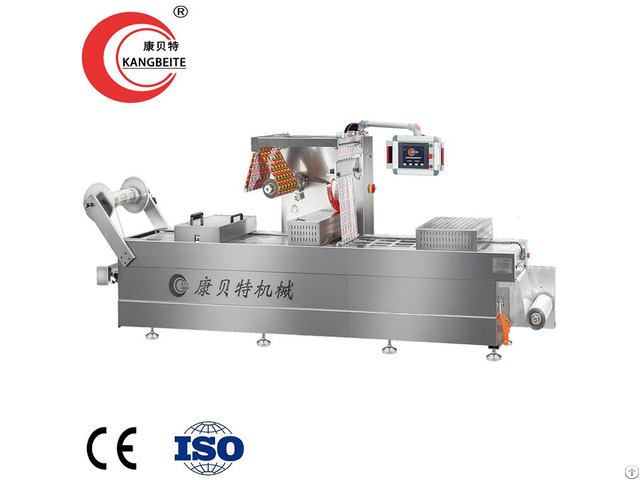

The MAP machine from Kangbeite Machinery is basically a variety of the thermoforming packing machine series.

Modified atmosphere is the practice of modifying the composition of the internal atmosphere of a package (commonly food packages, drugs, etc.

) in order to improve the shelf life.

The need for this technology for food arises from the short shelf life of food products such as meat, fish, poultry, and dairy in the presence of oxygen.

In food, oxygen is readily available for lipid oxidation reactions.

Oxygen also helps maintain high respiration rates of fresh produce, which contribute to shortened shelf life.

From a microbiological aspect, oxygen encourages the growth of aerobic spoilage microorganisms.

Therefore, the reduction of oxygen and its replacement with other gases can reduce or delay oxidation reactions and microbiological spoilage.

Oxygen scavengers may also be used to reduce browning due to lipid oxidation by halting the auto-oxidative chemical process.

The modification process generally lowers the amount of oxygen (O2) in the headspace of the package.

Oxygen can be replaced with nitrogen (N2), a comparatively inert gas, or carbon dioxide (CO2).

A stable atmosphere of gases inside the packaging can be achieved using active techniques, such as gas flushing and compensated vacuum, or passively by designing “breathable” films.

Specification

Model DRZ-MAP-420

Machine dimension Customize

Width of forming film 422mm

Width of sealing film 393mm

Vacuum Degree 0.1mBar

Max.

forming depth 70 mm

Vacuum Pump 100-300m3/h

Customizable Yes

Power Apply to using area

Features

Multi function packaging machine line is highly customizable product, the above datas are all customizable.

Cycle speed is adjustable by touch panel, easy to read and operate (with choice of multi-language)

Durable SUS304 stainless steel construction

Original German (BUSCH or Gardner Denver) vacuum pump guarantee performance and durability.

Forming depth is adjustable

Machine can be set up for clear and printed film

Fast, simple, easy change over for die sets

Safety measures conform to CE regulations

AirTAC valve terminal type pneumatic system.

Photoelectric tracking sensor from USA Banner Corp guarantees high precision package, perfectly adapt to different gloss lamination package.

Cross-cutting knife operates independently and controlled by computer.

No need to change cross-cutting knives when die set is changed

Equipped with warning and protection system for power default phase, reverse phase and overtension, and lubrication of machines, which can help for operator use and adjust easily.

Forming, sealing, cross knife and rolling knife are all equipped with safety protection system and safety cover.

System can automaticly stop in case of emergency.

In the meanwhile, screen can show faults of system and appropriate solutions.

Options

Special design is available for various product

Cross cutting applies to different pattern

Extendable filling area

Automatic notice for insufficient film supply function

Date injecting, date thermal printing, labeling, water cooling machine

Gas flushing available for Modified Atmosphere Packaging (MAP)

Die sets customizable.

Extra die sets available at certain prices.

Different vacuum pump options

Functions

Food: to prevent oxidation, mildew, insect borers and dampness; to maintain product freshness and to preserve flavor

Electronic or metal parts: to avoid dampness and prevent rust

Extend product shelf life

Nice appearance

Available for special applications

Applications

Fresh meat, seafood, pickles, vegetables, agricultural products, fruit, vegetarian food, herbs, bean paste, prepared foods, electronic parts, precious metals, precision instruments, medical instruments and medicine…etc.
