Recirculating Water Chiller Cw5200 For 130w Co2 Laser Cutting Machine - China

Refrigeration Water Chiller

S&A manufacturer

16 Years Experience

Recirculating chillers with Cooling capacity Ranging From 0.6-30kW Recirculating water chiller CW-5200 is applicable to cool 130W CO2 laser cutting machine.

It is produced by Guangzhou Teyu Electromechanical Co., Ltd (also known as S&A), a professional China-based chiller unit manufacturer with 16-year experience.

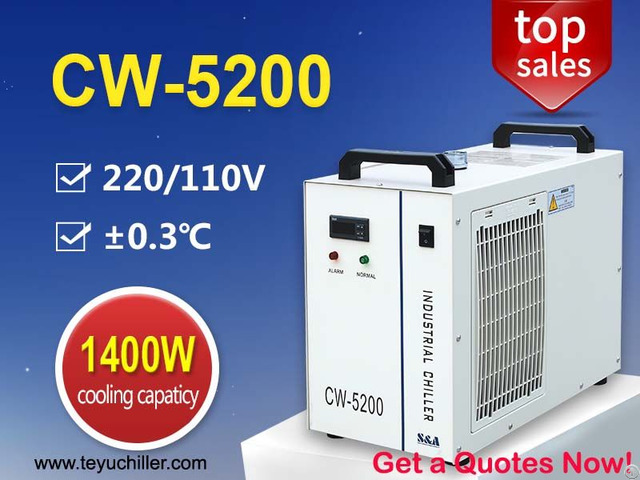

Air cooled industrial chiller CW-5200 features the cooling capacity of 1400W and the temperature stability of ±0.3℃ in addition to 6L tank capacity.

What makes air cooled industrial chiller CW-5200 outperforms other chiller brands is that it has intelligent temperature controller which can display water temperature & room temperature and realize multiple alarm functions, such as compressor time-delay protection, compressor overcurrent protection, water flow alarm and over high / low temperature alarm so that the chiller can be well protected.

Recirculating water chiller CW-5200 is equipped with water level gauge, so that users no longer have to worry about if they are adding too much water inside.

The suitable water level is within the green indicator of the water level gauge.

Air cooled industrial chiller CW-5200 conforms to the standard of CE, RoHS, REACH and ISO, so users in different countries can rest assured when using air cooled industrial chiller CW-5200 - Besides, S&A offers 2-year warranty on all the chillers it produces.

It is suggested to use purified water or clean distilled water as the circulating water to reduce the possible clogging inside the circulating waterway.

Specification:

Voltage: 110V-220V; Frequency: 50/60Hz; Refrigerant: R-22 /R-410a

Pump power: 0.03KW/0.05KW/0.1KW; Tank capacity: 6L

Max.

lift: 10M-25M; Max.

flow: 10L/min- 16L/min

N.

W: 26Kgs; G.

W: 29Kgs;

Dimension : 58 X 29 X 47 cm (L X W X H); Packing dimension: 70 X 43 X 58 cm (L X W X H) About S&A Brand

S&A(TEYU) was founded in 2002 - After 16 years of developing and producing industrial water chillers, the headquarter covers an area of 18, 000 square meters, and has about 250 employees.

Why choose S&A

Product Advantages:

1 - With 11 patent certificates, ISO, CE, RoHS and REACH compliant; Conforms to air transport requirements; 2 years warranty

2.

±0.1℃ high precision temperature control, stable cooling performance, support ModBus-485 communication;

3 - Establish logistic warehouses at USA and Europe;

Manufacturing Advantages:

1 - Independent R&D on sheet metal, evaporator, condenser and cores parts of chiller;

2 - Annual output 60, 000 units, product exports rate above 60%；

3 - Standard bulk production, standard parts rate up to 80% ；

4 - With excellent laboratory testing system, simulates actual working environment for chiller.
