20l Pc Bottles Making 20 Litre Polycarbonate Bottle Blow Molding Machine - China

Calmus Machinery, a division of Brentorma, is a leading equipment manufacturer in mainland China, who provides complete solutions for the drinking water and beverage industry.

Our products include commercial filtration systems, bottle and bag-in-box (BIB) filling lines, bottle and water tank blow molding machines, as well as additional equipment used in the water and beverage processing industry.

We've helped many foreign customers build their own water factories by supplying water filtration systems, water bottling, bag-in-box (bib) filling, bottle blow molding machines and other supporting equipment.

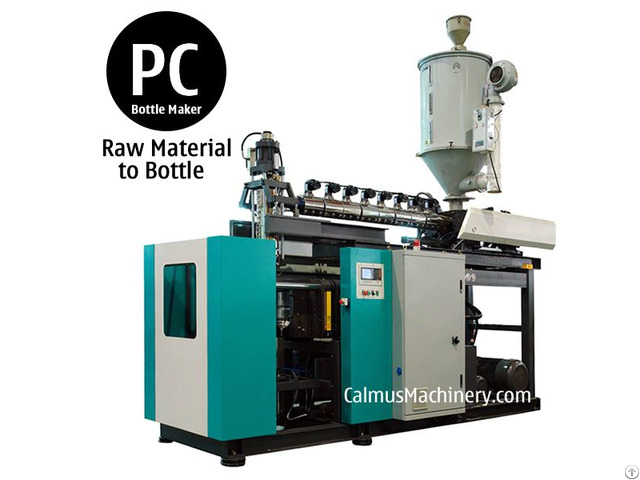

20 Litre PC Bottle Making Machine | 20L Polycarbonate Blow Molding Machine Type: Raw Material to Bottle (no need of Preforms)

Feed material: Polycarbonate (PC) raw material (in granules)

Bottle volume: 20 litre Production capacity: 60 pcs/hour (20 litre) 1) Plasticizing System

Screw Diameter (mm): 85

Ratio of Screw Length/Diameter (L/D): 28

Plasticizing Rate (kg/hr): 80

Injection Stroke (mm): 360

Screw Speed Range (rph): 10-56 2) Clamping System

Clamping Force (kN): 190

Clamping Stroke (mm): 350

Mould Thickness Range (mm): 370-410

Max Opening between Platens (mm): 720 3) Power Consumption

General Power (kW): 84

Hydraulic Motor (kW): 37

Electrical Heating Power (kW): 44

Average Electricals Power Rating (kW): 58 4) Air Source Connection

Required air source pressure: min.

6-10 bar; Air consumption: 0.4M3/min.

5) Water Source Connection

Required water pressure: min.

2-3 bar; Water consumption: 6M3/min.

6) Control System

100-point wall thickness control, 6" colour display.

7) Machine Dimensions

4, 985(L) x 1, 465(W) x 2, 765(H) mm 8) Machine Weight

6 tons (not including hydraulic oil and mould) 9) Production Capacity

>= 60 bottles/hour (based on qualification rate of 98%) --- What do you need to prepare for making PC (Polycarbonate) Bottles?

PC resin granules in bags.

Process:

1 - Load PC resin in the Hopper of the machine.

2 - Melt PC resin coming into the mould.

3 - Melt PC resin is shaped into a bottle in the mould.

4 - The mould is open and take out the bottle.

Very simple.

Easy to buy material and easy to operatre.

What kind of bottles does the machine can make?

2-5 gallon bottles with or without handle.
