Twelve Layers Hdi Pcb High Tg180 Material - China

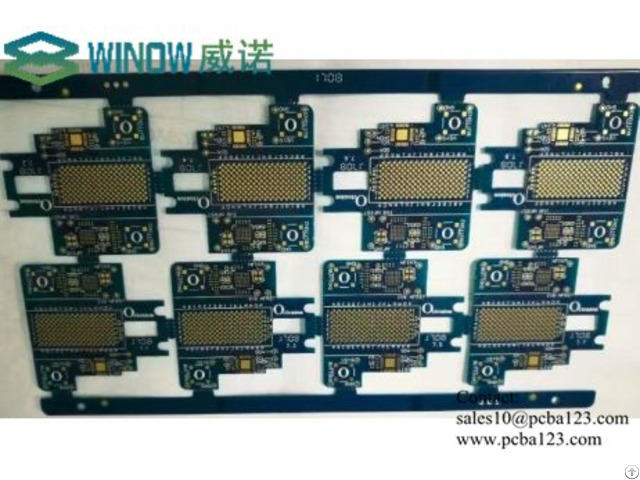

12 layers High Density Interconnect HDI PCB High TG180 Material HDI PCB: HDI (High Density Interconnector) PCB has smaller holes (≤0.15mm) in BGA or copper pad which will using laser drilling, and most of HDI PCB has intersect blind and buried vias.

HDI technology becomes more and more popular for the field of mobile phone, PC, automotive electronics and other digital products.

Products specification: Layers: 12 HDI board Material /Laminate: IT180A (TG180) Board thickness: 1.2mm Minimum trace width/gap: 3/3mil Minimum hole: 0.1mm Copper weight: inner & outer 0.5oz Finishing: ENIG BGA design rules 1)The minimum BGA ball should be above 10mil for HASL and HASL lead free surface finish.

2)Min 9mil size BGA ball for Immersion Gold.

3)For minimum via(Except 0.15mm), the PCB thickness/minimum hole size that the aspect ratio should be ≤10 - 4)The size of 0.15mm via holes only be drilled for finished thickness board ≤1.2mm.

Advantage 1 - PCB factory directly 2 - PCB Have the comprehensive quality control system 3 - PCB good price 4 - PCB quick turn delivery time from 48hours.

5 - PCB certification(ISO/UL/RoHS ) 6 - 8 years experience in exporting service 7 - PCB is no MOQ/MOV.

8 - PCB is high quality.

Strict through the AOI(Automated Optical Inspection), QA/QC, fly porbe, Etesting

Company Contact:

• Posted By: Winow New Energy Technology Co., Ltd.

• Phone: +86 (755) 2963-0063

• Address: Longcheng Rd, XieKeng, QingXi, DongGuan City, GuangDong Province, DongGuan , QingXi , China

• Email:

• Website: https://www.pcba123.com/

• Business Description: Winow New Energy Technology Co., Ltd. Is founded in 1999, the company covers an area of over 80,000, square meters, construction area of over 30,000 square meters, was located in Dongguan QingXi Technology Industrial Park, which belongs to Hitech Group.

  Company beautiful environment, with modern production plant and equipment, the company mainly produces high-precision, high density and high Reliability double-sided pcb, multilayer printed circuit boards, Aluminium metal core pcb, High density PCB and circuit board assembly, development, production and sales.

  And Shenzhen has established factories, products are sold to domestic and foreign, markets.

  Companies continue to introduce advanced equipment, upgrade technology and management experience, has become one of the largest PCB manufacturers and PCB assembly services suppliers in southern of China.
