Yl Ak5m Mechanical Seal - China
price: 45.00 Dollar US$
Basic Features
Structure: Single-End
Pressure: High Pressure Mechanical Seals
Speed: High Speed Mechanical Seal
Temperature: High Temperature Mechanical Seal
Performance: Corrosion
Standard: DIN24960, EN12756, ISO03069, GB6556.
Model NO: AK5M
Balance: Balanced
Specification: Inner Diameter: 38 mm, 48 mm, 53 mm, 65 mm, 90 mm, 100 mm
Product Detailed Description

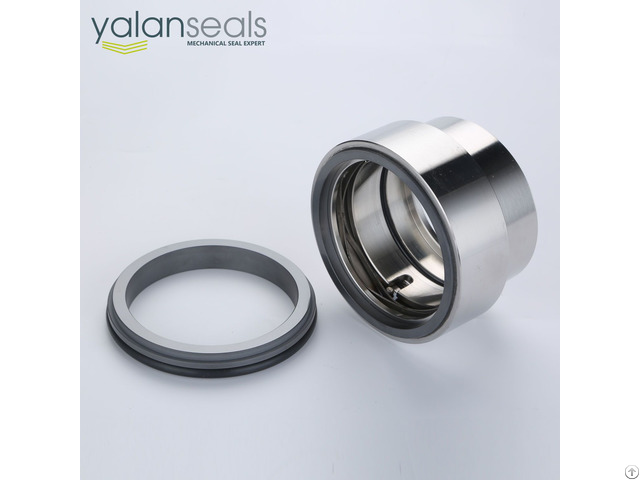

YL AK5M Mechanical Seal for Paper-making Equipment and other Industrial Pumps Structural Features: single-end, balanced, independent direction of rotation, wave spring with spring protector.
The spring is separated from the sealed mediums so it will not be jammed.
This seal component has a simple structure and is easy to install with stable performance.
Industrial Standards: DIN24960, EN12756, ISO03069, GB6556 - Scopes of Application: widely used in chemical engineering, pulp production, pulp cooking, and sewage treatment.
Designed for paper pulp pumps, sewage pumps, chemical pumps and other rotary devices and works and replacement to similar products of ANDRITZ and Sulzer.
Operation Parameters:
Pressure: 0 ~ 2.5 MPa
Temperature: - 40 ~ 230 ÂșC
Linear Speed: 20 m/s or less
Materials:
Rotary Ring Face: Carbon/SiC/TC
Stationary Ring Face: SiC/TC
Elastomers: NBR/EPDM/Viton/Aflas
Springs: SS304/SS316/PH17-4
Metal Parts: SS304/SS316/SS316L
Mediums: oil, water, solvents, paper pulp and other mediums.
Customization: Changes of materials for getting other operating parameters are possible.
Contact us with your requirements.
