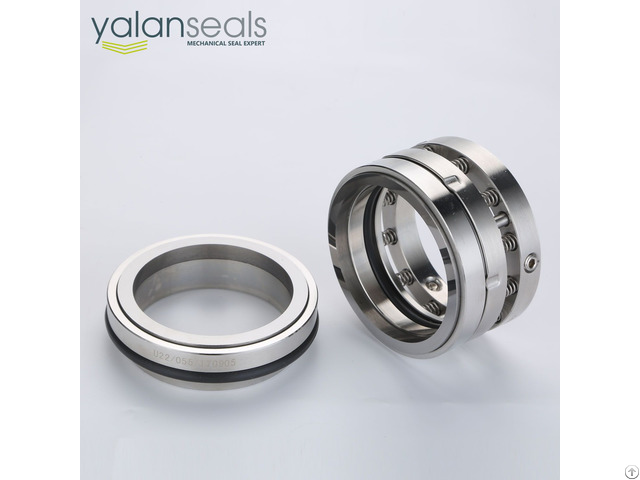

Yalan C20 Multi Spring Unbalanced Mechanical Seal - China

price: 45.00 Dollar US$

Basic Features

Structure: Single End

Pressure: Medium Pressure

Speed: General Speed

Temperature: Medium Temperature

Performance: Wear and Weak Corrosion

Standard: ISO3069, GB6556, DIN24960, EN12756

Model NO: C20

Balance: Unbalanced

Specification: Inner Diameter: 14 mm to 120 mm

Product Detailed Description

YALAN C20 Multi Spring Unbalanced Mechanical Seal for Chemical Centrifugal Pumps, Vacuum Pumps, Compressors and Reaction Kettles Structural Features: single end, multi springs, unbalanced, independent rotary direction, screw pin and lug combined transmission.

The transmission method is simple and reliable.

All compensation components are pre-assembled so the seal component itself is easy to be installed with great compensation performance.

The loads on seal faces are well balanced and the whole seal is easy to adjust with stable sealing performance.

Industrial Standards: ISO3069, GB6556, DIN24960, EN12756 Scopes of Application: widely used in petroleum, chemical engineering, chemical fiber, food and beverage production, pharmacy, paper pulp production and environmental industries.

Operation Parameters:

Pressure: 1.2 MPa or less

Temperature: - 40 ~ 200 ÂșC

Linear Speed: 25 m/s or less

Materials:

Rotary Ring: Carbon/SiC/TC

Stationary Ring: Carbon/SiC/TC

Elastomers: NBR/EPDN/FKM/PTFE

Springs: SS304/SS316

Metal Parts: SS304/SS316

Mediums: water, oil and amorphism acid, alkali, salt and organic solvents.

Customization: Changes of materials for getting other operating parameters are possible.

Contact us with your requirements.


Company Contact:


  • Phone: +8617775378093

  • Address: No. 19 Dongxing Road, Industrial Park of Dingyuan, Dingyuan County, Chuzhou , Anhui , China

  • Email: Email


Published date: February 22, 2019

  • Business Description: YALAN Mechanical Seals, fully named as Anhui YALAN Seal Component Co., Ltd., and with this new name, was founded in 2001 (factory was founded in 1993) as a national high technology enterprise.

    With over 25 years of design and production experiences in mechanical seal component industry, YALAN has become a professional mechanical seal supplier that owns a full set of the chain of product design and development, manufacturing, sales and after-sales support services.

    Right now YALAN Seals is one of the leading mechanical seal manufacturers in China.

    With continuous innovations, YALAN Seals has accomplished a lot of honor and awards by both national and local government.

    As one of the leading high quality mechanical seal suppliers, the company right now has over 15, 000 square meters of production facilities, 10 main production lines with over 70 full-time employees in the factory and an annual revenue of USD 13 million.

    YALAN supplies different kinds of products with high quality and favorable price.

    We're pleased to get your Inquiry and we will reply you as soon as possible.

    We stick to the principle of "quality and service come first, with continuous improvement and innovation to meet the customers' requirements" for the management and "zero defect and complaint" as the quality objective.

    Our seal products have been widely used in different sorts of pumps, including but not limited to chemical pumps, centrifugal pumps, high-temperature oil pumps, clean water pumps, circulating pumps, vacuum pumps, sewage pumps and slurry pumps.

    Beside for pumps, our seals also work with reaction kettles, submerged motors, compressors, blowers, paper-making equipment, sewage treatment equipment and other rotating machines.

    Some products of YALAN have become good alternative solutions, which have the same level of quality but more affordable prices, compared to the original seal products from famous industrial companies such as ALFA-LAVAL, Andritz, KSB, John Crane, Grundfos, Siemens, EAGLE, Flexibox, EG&G SEAL OL, Roten, Sundyne, Chesterton, Pillar and etc.
