High Efficiency R404a Condensing Unit 9hp Air Cooling Cold Storage Refrigeration Units - China
price: check with company for price

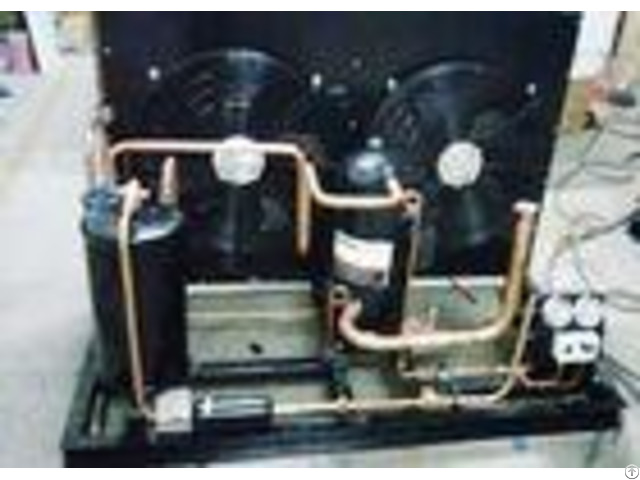

9HP R404a Air Cooling Condensing Unit Refrigeration Unit For Cold Storage Products Feature : 1 ) Adopt world famous brand Copeland hermetic compressor, with high reliability, less vibration and low noise ; 2 ) Adopt cabinet structure, attractive appearance, compact structure easy installation; 3 ) Condenser fan adopt high quality motor, high efficiency and low noise; 4 ) Adopt copper tube aluminum fin condenser, with more face area, high heat exchange efficiency and long service life .
5 ) Can meet high, medium and low temperature requires .
Air - Cooled Refrigeration Unit Technical parameters : 1 .
Condenser Details : - - - - Qty Of Fan ( piece ) | Air Volume ( m3 / h ) | Power of Fan ( W ) | 1 | 1 * 12200 | 1 * 800 | - - - - 2 .
Refrigerant Capacity Of Compressor : a.
Evaporating Temperature -5 - - - - Cooling Capacity | 20700 W | Power | 8840 W | - - - - b .
Evaporating Temperature - 12 - - - - Cooling Capacity | 16150 W | Power | 8410 W | - - - - 3 .
Coupling : Tube Coupling : 5 / 8 Suction Coupling : 1 - 3 / 8 4 .
Overall Dimensions : Length ( L ) : 1100mm Width ( B ) : 900mm Height ( H ) : 980mm 5 .
Mounting Dimensions : Length ( D ) : 750mm Width ( E ) : 870mm Standard configuration of units : compressor, condenser, liqid receiver, pressure controller, pressure gauge, filter, solenoid valve and wiring box, etc .
Note : 1 .
Cooling capacity in the form iscalculated when the ambiernt temperature is 32 - 2 .
Configuration can be added according to customers' requirements .
3 .
When the compressor using refrigerant R22, and evaporating temperature lower than - 15 cylinder head fan must be installed .
When the evaporating temperature below - 25 the compressor hydrojet system also must be installed .
4 .
When the compressor using refrigerant R404a, and evaporating temperature lower than - 20 cylinder head fan must be installed .
Company Contact:
- Phone: 86-20-83177358
- Address: D310 Mingzhu Creative Center No. Huayuan Road Baiyun District, Guangzhou China, Guangzhou , Guangdong , China
- Email:
Published date: April 13, 2018
- Business Description: In addition to ISO9001-2008 certification, the condensing units accord with the GB / T21363 - 2008 standard , and gain the manufacturing license of refrigeration equipment , condensers and evaporators achieve the standard of GB / T25129 - 2010 , Also pass the CE certification .
