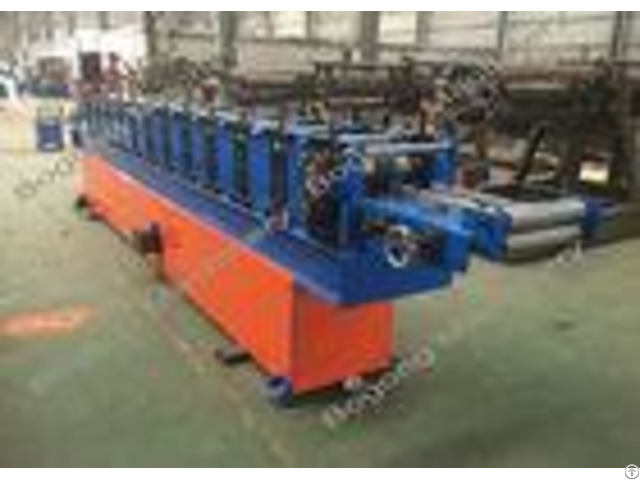

Steel Roofing Batten Ceiling Roll Forming Machine 24v Control Voltage - China
price: check with company for price
Steel Roofing Batten Roll Forming Machine, Ceiling Batten Roll Forming Machine Technical Parameter - - - - Machine Component | Specification | 1.5Tons Manual Deocoiler | Coil Inner-diameter=51030mm.
Coil Outer-diameter Max.
1300mm | Taper wedge expanding system | Load Capacity: Max.
1.2 Tons; Coil Width Max.
1250mm | Roof Batten Roll Forming Machine | Gear/Sprocket driving; 14stations roll forming | Rollers manufactured from 45# steel, CNC lathes, hard Chrome Coated, fine polished.
| Shafts Diameter=65mm, Precision Machined, fine Polished | Main motor =4KW, Frequency speed control | Max Line speed of roll Former: Approx.
10-15m/min | Hydraulic Cutting Device | Stop to cut, Post cut, slug cut | Cutting tool material: Cr12, Heat treatment | Hydraulic unit, Pump motor =3KW | PLC Control System | Control the quantity & cutting length automatically | Combined with: PLC (Siemens), Touch Screen (Siemens), Encoder (Omron), etc | Cut-to-length tolerance2mm | 24V Control voltage | Portable controller with forward/backward/emergenc y stop buttons | Product Rack | Un-powered, 3 units | - - - - Roll Forming Machine Description The roll forming machine manufactures steel roofing and ceiling battens is well known as roof batten roll forming machine or ceiling batten roll forming machine.
Batten is with many meanings in construction area but generally it is a strip of solid material, historically made from wood but can also be made from plastic, metal, or fiberglass.
In the steel industry, battens used as furring may also be referred to as top hats, in reference to the profile of the metal.
The steel battens is most popular used as roofing and ceiling.
Steel foof and ceiling battens are light but strong.
The aluminum zinc battens made from Steel Roofing Batten Roll Forming Machine, Ceiling Batten Roll Forming Machine are capable to remain straight and use in long life.
The HAT shaped profile of the batten allows for ne sting, making them easier to store, carry and handle.
There are so many metal or steel batten systems available for construction and decoration used.
Choose steel roof and battens adavantage: 1 - Can prevent plaster board be cracked when fixing the lining boards to timber directly; 2 - To keep ceiling even no mater the timber is uneven.
3 - Fixing of ceiling batten along with some clips will reduced impact of noise between the top and bottom floor in a residential house.
Roofing & Ceiling Batten Design Drawing This steel roofing & ceiling batten raw material trip width is about 121mm and thickness is 0.4-0.7mm, user can choosebottom dot design and swaist ribs design is option for whole roll forming lines.
Company Contact:
- Posted By: Xiamen Bogong I & E Co., Ltd.
- Phone: 86-592-6382566
- Address: Area 5, No. 788 Jimei North Road, Jimei District, Xiamen, China, Xiamen , fujian , China
- Email:
Published date: April 25, 2018
- Business Description: With good faith in roll forming machines industrial, Xiamen Bogong Automatic Technology Co.
Ltd has been on effort for kinds of roll forming machines more than 10 years.
During this period, except ourselve roll forming machines, many oversea customers need other assistant help such steel coil.
